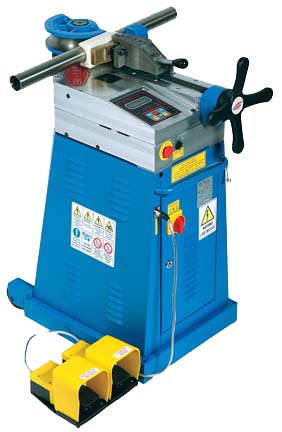

Model: Topbender 50
Year: New
SPECIFICATIONS
Minimum Diameter………….. 1/4″
Maximum Diameter…(Tube)….. 2-1/2″
(Sch 40)… 2″
Maximum Speed…………….. 1.2 RPM
Minimum Centerline Radius….. (2) Times Material Diameter
Maximum Centerline Radius….. 11-7/8″
Bending Capacity………….. 0-210 Degrees
Drive Motor………………. 2 HP-220V-3 Phs
Dimensions……………….. 27″ x 20″ x 39″H
Weight…………………… 430 Lbs
MINIMUM CAPACITIES
Pipe ……………….. 2″ X Sch 40
M.S. Tube …………… 2-1/2″ x .157″
S.S. Tube …………… 2-1/2″ x .118″
304L S.S. Tube ………. 2-1/2″ x .118″
Round Solids ………… 1-1/2″
Rect. Solids ………… 1/2″ x 2″
Rect. Tube ………….. 1″ x 2″
Sq. Solid …………… 1.6″
Sq. Tube ……………. 2″ x .203″
EQUIPPED WITH
Rotary Draw
“Electro-Mechanical”
Bends To 90 Degrees In (7) Seconds
Programmable Touch Pad Control
(10) Programs Storage
(9) Bends Per Program
Programmable Bending Angle
Programmable Material Spring-Back Compensation w/Display
Patented Tooling System With Multiple Radius Available
Swing Away “Counter-Bending” Die Vise
Portable With Base Wheels & Lift Handle
Tools Mount To Hex Shaped Shaft For Rapid Changeover
Foot Pedal
