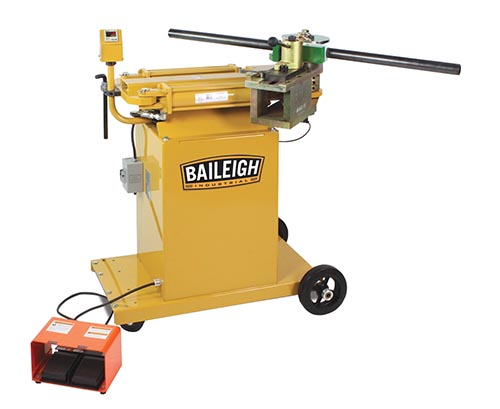

Model: 175
Year: New
SPECIFICATIONS:
Minimum Diameter………………….. 1/4″
Maximum Diameter………………….. 2-1/2″
Maximum Speed to 180 deg. …………. 30 Sec
Maximum Return Speed from 180 deg…… 2 Sec
Maximum Center Line Radius…………. 9″
Minumum Center Line Radius…………. 1/2″
Bending Capacity………………….. 0 – 180 degrees
Drive Motor………………………. 2 HP-110V-1 Phs
Weight…………………………… 630 Lbs
BENDING CAPACITY:
Dia. Wall
Mild Steel Pipe (Sch 40)………… 2″
Aluminum Pipe (Sch 40)………….. 2″
Stainless Steel Pipe (Sch 40)……. 1.5″
Mild Steel Round Tube (Wall)…….. 2.5″ ….. (.125″)
Aluminum Round Tube (Wall)………. 2.5″ ….. (.156″)
Stainless Steel Round Tube (Wall)… 2.375″ … (.125″)
Chromolly Round Tube (Wall)……… 2″ ……. (.125″)
Mild Steel Solid Rod……………. 1.25″
Mild Steel Square Tube (Wall)……. 2″…….. (.125″)
MACHINE FEATURES:
“Auto Stop” … Manually Adjustable Stop for Repeat Bends
Swing Away Counter Bending Die
Accomodates Tooling w/up to 8″ or 9″ Center Line Radius
Wheels & Castors for Portability
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
