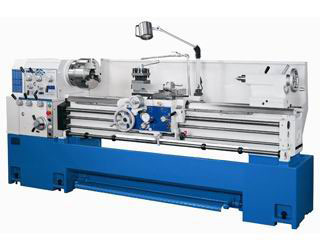

Model: S-1700-E
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 16.93”
Swing Over Cross Slide… 9.45”
Swing In Gap…………. 25.59”
Dist. Between Centers…. 90”
Spindle Nose…………. D1-8
Spindle Hole…………. 3.07”
Bed Width……………. 11.81”
Spindle Speeds(12)……. 40 – 2000 RPM
Threading……………. Inch / Metric
Motor Size…………… 7.5 HP – 220/440V – 3 Phs
Tailstock Taper………. # 4 MT
Weight………………. 5450 Lbs
Dimensions…………… 133″L x 38″W x 64″H
EQUIPPED WITH:
10” – 3 Jaw Chuck
Chuck Cover w/Limit Switch
(4) Way Tool Post
(6) Steady Rest
Follow Rest
Foot Brake
Coolant System
Full Length Splash Guard
Thread Dial
Inch/Metric Gears
H & G Head Stock Gears & Bed Ways
OPTIONAL ACCESSORIES: P.O.R.
10″ – 3 Jaw Chuck
10″ – 3 Jaw “Zero Set” Chuck w/D1-8 Back Plate
12″ – 3 Jaw Chuck
12″ – 4 Jaw Chuck
14 Face Plate
9 Steady Rest
Drive Plate
Micro Carriage Stop
(4) Position Carriage Stop
Taper Turning Attachment
#4 MT Live Center
5C Lever Type Collet Closer
Quick Change Tool Post w/(5) Holders
Newall DRO – Installed
COMMENTS:
“USA” Importer – Distribution & Parts Center
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
