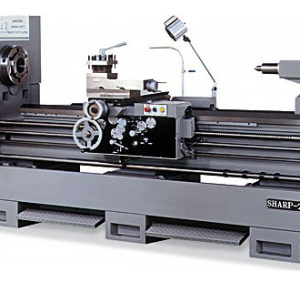

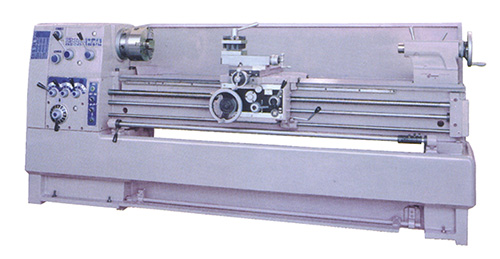

Model: GH
Type: Precision Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 17”
Swing Over Cross Slide… 10-3/4”
Swing in Gap…………. 24”
Dist Between Centers….. 67”
Max Turning Length……. 67”
Spindle Nose…………. D1-6
Spindle Hole…………. 2-1/4”
Bed Width……………. 12”
Spindle Speeds (12)…… 35 – 2000 RPM
Threading Inch……….. Metric
Motor Size…………… 7.5 HP – 220/240V – 3 Phs
Tailstock Taper………. #4 MT
Gross Weight…………. 3500 Lbs
Shipping Dimensions…… 114.17”(l) x 41.73”(w) x 59”(h)
EQUIPPED WITH:
9” – 3 Jaw Chuck
Center Sleeve
Coolant System
Multi Position Length Stop
Rear Splash Guard
Foot Brake
Steady Rest
Tools & Tool Box
Operation Manual
MACHINE FEATURES
2-1/4” Spindle Hole
Gap Bed Design
H & G Head Stock Gears
H & G Cross Feed Screw
H & G Bed Ways
Meehanite Casting
Inch/Metric Threading w/Dual Scales
Main Spindle Equipped w/ (3) Precision Taper Roller Bearings
OPTIONAL ACCESSORIES:
10” – 4 Jaw Chuck
12” 4 Jaw Chuck
17” Drill Attachment
Full Length Splash Guard
Rear Toolpost
Micro Carriage Stop
14” Face Plate
Taper Turning Attachment
Quick Change Tool Post w/ Holders
Work Light
(2) Axis Newall Digital Readout – Installed
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Techinical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
