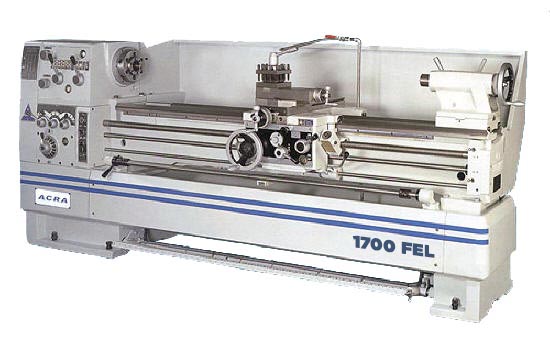

Model: FEL
Type: Precision Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 17”
Swing Over Cross Slide… 10-1/2”
Swing in Gap…………. 24”
Dist Between Centers….. 43”
Spindle Nose…………. D1-6
Spindle Hole…………. 2-1/4”
Bed Width……………. 12”
Spindle Speeds (12)…… 35 – 2000 RPM
Threading……………. Inch/Metric
Motor Size…………… 7.5 HP – 220/240V – 3 Phs
Tailstock Taper………. #5 MT
Gross Weight…………. 3740 Lbs
Shipping Dimensions…… To be Advised
STANDARD EQUIPMENT:
10″ – 3 Jaw Chuck
12″ – 4 Jaw Chuck
(4) Way Toolpost
Coolant System
Steady Rest
Follow Rest
Tailstock
Full Length Splash Guard
Foot Brake
Halogen Work Light
Tools & Tool Box
Operation Manual
MACHINE FEATURES:
2-1/4” Spindle Hole
Gap Bed Design
H & G Head Stock Gears
H & G Cross Feed Screw
H & G Bed Ways
Meehanite Casting
Inch/Metric Threading w/Dual Scales
Main Spindle Equipped w/(3) Precision Taper Roller Bearings
OPTIONAL ACCESSORIES:
12″ – 3 Jaw Chuck
16″ – 4 Jaw Chuck
6″ Steady Rest
8″ Steady Rest
Follow Rest
Face Plate
Micro Carriage Stop
Taper Turning Attachment
Lever Type 5C Collet Loser JFK
Quick Change Toolpost
#5 Live Center
Chuck Guard
(2) Axis Newall Digital Readout – Installed
