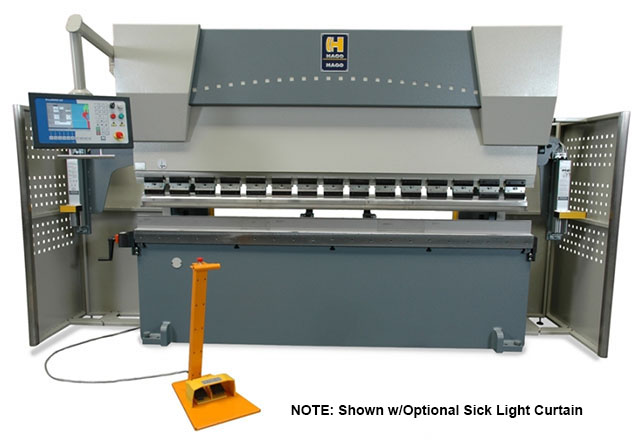

Model: ERME-14/165
Type: CNC
Year: New
SPECIFICATIONS
Tonnage………………. 165 Ton
Bending Length………… 169”
Dist. Between Housings…. 147”
Throat Depth………….. 9.8”
Stroke Length…………. 7.8”
Ram Adjustment………… 7.8”
Fast Approach Speed……. 165 IPM
Fast Return Speed……… 189 IPM
Press Speed…………… 24 IPM
Motor Size……………. 20 HP – 220/440V – 3 Phs
Weight……………….. 28,400 Lbs
CAPACITY:
Mild Steel …. 14’ x 3/16″
Mild Steel …. 7’ x 5/16″
EQUIPPED WITH:
EasyBend 2D “CNC Control
(2) Finger Blocks … Manually Adjusted in Width & Height
Manual Anti Deflection Table
Foot Pedal
Hydraulic Oil
Operation & Programming Manual
MACHINE FEATURES
Hydraulic Cylinders
Synchronized Ram Cylinder (Y1, Y2) that are Independently
Controlled & Referenced by Linear Scales (Accurate +/- 0.0004″)
26” Programmable “Ballscrew” Backgauge
Floor Mount
OPTIONAL ACCESSORIES:
(2) Axis Backgauge
(3) Axis Backgauge
(4) Axis Backgauge
“CNC” Controlled Anit Deflection Table
HacoBend 2D Offline 2D Software
Laser Finger Protection System
Laser Safe Manual Light Guards
FastBend 2D Premium Control
EASYBEND 2D “CNC” CONTROL:
10″ Color TFT Display
Linux Operating System
Automatic or Manual Bending
Unlimited Programs
2D Graphical Programming
Multiple Drawing Methods
Automatic Bending Sequence Generation
Automatic Backgauge Setting
Tool Library – (30) Top Tools & (30) Bottom Tools
Material Library – (30) Materials
USB Port
COMMENTS: Mfg. in Europe
