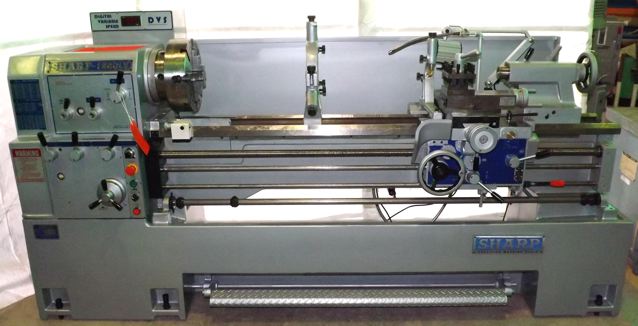

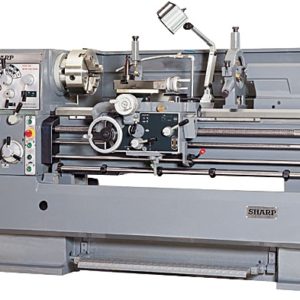

Model: 1660-LV
Type: Geared Head
Year: New
SPECIFICATIONS:
Swing Over Bed……….. 16”
Swing Over Cross Slide… 8.75”
Swing in Gap…………. 24.38”
Dist Between Centers….. 60”
Max Turning Length……. 60”
Spindle Nose…………. D1-8
Spindle Hole…………. 3-1/16”
Bed Width……………. 11.75”
Spindle Speeds(VS)……. 20 – 2000 RPM
Threading……………. Inch/Metric
Quill Diameter……….. 2.25″
Quill Travel…………. 5″
Motor Size…………… 7.5 HP – 220V – 3 Phs
Tailstock Taper………. #4 MT
Weight………………. 4100 Lbs
Dimensions…………… 105″L x 32″W x 47″H
EQUIPPED WITH:
10″ – 3 Jaw Chuck
Coolant System
Full Length Splash Guard
(1/2″ – 6″) Steady Rest
16″ Face Plate
Follow Rest
Longitudinal Carriage Stops
Halogen Work Light
Tool Kit & Manuals
MACHINE FEATURES:
3-1/16″ Spindle Hole
Gap Bed Design
H & G Head Stock Gears
H & G Bedways
(1) Piece Cast Meehanite Bed
OPTIONAL ACCESSORIES:
12″ – 3 Jaw BTC Chuck (In Lieu of 10” Standard)
12″ – 3 Jaw BTC Chuck
12″ – 4 Jaw BTC Chuck
10″ – 3 Jaw Bison Chuck
12″ – 3 Jaw Bison Chuck
16″ – 3 Jaw Bison Chuck
12″ – 4 Jaw Bison Chuck
16″ – 4 Jaw Bison Chuck
Chuck Guard
Micrometer Carriage Stop
(4) Way Toolpost
Taper Attachment
Roller Jaws for Steady Rest
(1/2″ – 6″) Steady Rest
(4″ – 9″) Steady Rest
5C Collet Set (1/8″ – 1-1/8″ x 1/16″)
5C Collet Closer
“Aloris Type” Quick Change Toolpost w/(7) Holders
14N Jacobs “Ball Bearing” Chuck w/Arbor (0″ – 1/2″ Capactiy)
#4 MT Live Center
Newall Digital Readout
