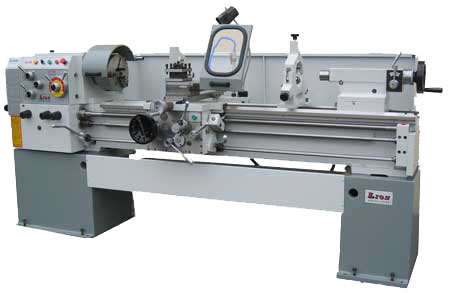

Model: 1660-M … Geared Head
Type: Engine Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 16”
Swing Over Cross Slide… 9-7/8”
Swing In Gap…………. 22”
Dist Between Centers….. 60”
Max Turning Length……. 60”
Spindle Nose…………. D1-6
Spindle Hole…………. 2-3/32”
Bed Width……………. 12-13/16”
Spindle Speeds (11)…… 54 – 2400 RPM
Threading……………. Inch/Metric
Motor Size…………… 6 HP – 220V – 3 Phs
Tailstock Taper………. #4 MT
Weight………………. 4300 Lbs
Dimensions…………… 109″(l) x 40″(w) x 50″(h)
EQUIPPED WITH:
8″ – 3 Jaw “Semi-Steel” Chuck
12″ – 4 Jaw “Cast Iron” Chuck
Splash Guard
Chip Guard
5-1/2” Steady Rest
Coolant Pump
3.8″ Follow Rest
(4) Way Toolpost
Work Light
Leveling Screws
MACHINE FEATURES:
2-3/32″ Spindle Hole
Gap Bed Design
H & G Headstock
H & G Bed Ways
Inch Metric Gear Box
(4) Way Rapid Traverse
Double Multi Disc Clutch
Override Safety Clutch
Tag Along Tailstock (for Power Drilling/Boring)
Direct Reading Cross Slide Dial
OPTIONAL ACCESSORIES:
10″ – 3 Jaw Chuck
10″ – 3 Jaw “Set Tru” Chuck
12″ Face Plate
8″ Steady Rest w/Rollers
Lever Collet Attachment … (Installed)
Dorian Quick Change Toolpost Set
Newall Digital Readout … (Installed)
COMMENTS: Mfg. In Europe
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a part ?
Have a technical question ?
CALL: IMCO at 614-914-5087
F.O.B. Location
TERMS: Check w/Order
All prices subject to change without notice
