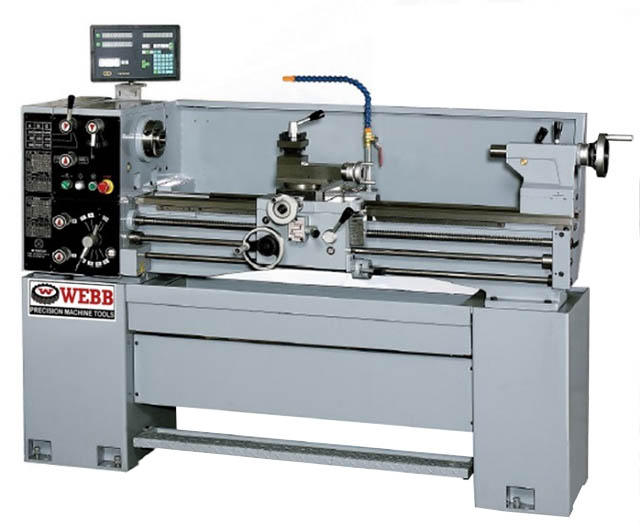

Model: WB-1640
Type: Precision Gear Head
Year: New
SPECIFICATIONS:
Swing Over Bed……….. 16”
Swing Over Cross Slide… 9-1/2”
Swing in Gap…………. 21-3/4”
Dist Between Centers….. 40”
Spindle Nose…………. D1-6
Spindle Hole…………. 2-3/16”
Bed Width……………. 10”
Spindle Speeds (12)…… 50 – 2000 RPM
Threading……………. Inch/Metric
Motor Size…………… 5 HP – 220V – 3 Phs
Tailstock Taper………. #4 MT
Gross Weight…………. 960 Lbs
Dimensions…………… 82″L x 30″W x 58″H
EQUIPPED WITH:
8” – 3 Jaw Scroll Chuck
10” – 4 Jaw Independent Chuck
(4) Way Toolpost
Floor Stand
Coolant
Rear Splash Guard
Steady Rest
10” Face Plate
Operation & Parts Manuals
MACHINE FEATURES
2-3/16″ Spindle Hole
Cast Iron Bed
H & G Headstock Gears
H & G Bed Ways
Overload Safety Device
Foot Brake
OPTIONAL ACCESSORIES:
8″ – 3 Jaw “Set Tru” Chuck
8″ – 6 Jaw “Set Tru” Chuck
“Aloris Type” Quick Change Toolpost w/(4) Holders
Taper Turning Attachment
14″ Face Plate
Work Light
Single Saddle Stop
Newall Digital Readout
