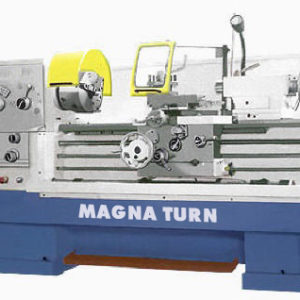

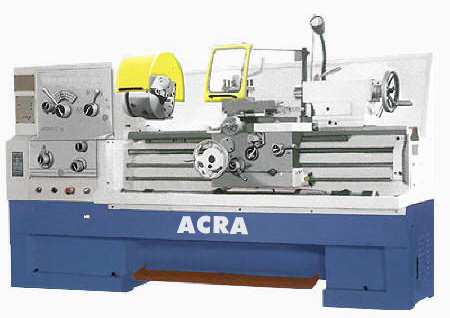

Model: FEL
Type: Geared Head
Year: New
SPECIFICATIONS:
Swing Over Bed……….. 16”
Swing Over Cross Slide… 10-1/4”
Swing in Gap…………. 23”
Dist Between Centers….. 40”
Spindle Nose…………. D1-6
Spindle Hole…………. 2-1/32”
Bed Width……………. 11”
Spindle Speeds(16)……. 33 – 2000
Threading……………. Inch/Metric
Motor Size…………… 7-1/2” HP – 220/440V – 3 Phs
Tailstock Taper………. #4 MT
Weight………………. 3600 Lbs
Dimensions…………… To be Advised
STANDARD EQUIPMENT:
8” – 3 Jaw Chuck
10” – 4 Jaw Chuck
Coolant System
Full Length Splash Guard
Chuck Guard
Follow Rest
(4) Way Tool Post
Carriage Stop
Steady Rest w/Rollers
Thread Dial
Center Sleeve
Halogen Work Light
Leveling Pads
Manuals
EQUIPPED WITH:
2-1/32″ Spindle Hole
Gap Bed Design
Cast Iron Bed
H & G Headstock, Gears & Bedways
Inch/Metric Gear Box
Foot Brake
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
Micro Carriage Stop
Taper Attachment
5C Collet Set (1/8” – 1-1/8” x 1/16”)
“Aloris Type” Q.C. Tool Post w/(5) Holders
18N Jacobs “Ball Bearing” Chuck w/Arbor (1/8” – 3/4” Capacity)
#4 MT Live Center
Sino Digital Readout
