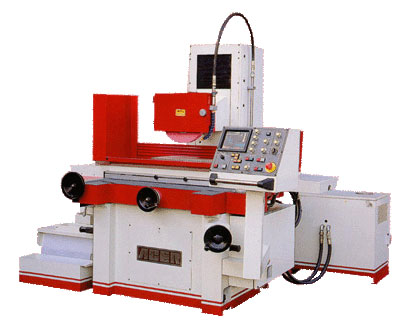

Model: 1640-AHD
Type: (3) Axis Automatic
Year: New
SPECIFICATIONS:
Table Size………………… 15.7″ x 39.4″
Longitudinal Travel………… 45.7″
Cross Travel………………. 17.7″
Vertical Travel……………. 24.4″
Center Line Spindle To Table… 24.4″
Wheel Size………………… 14″ x 2″ x 5″
Spindle Speed……………… 1750 RPM
Motor Size Voltage…………. 7.5 HP – 220/440V – 3 Phs
Axis……………………… (3) Axis Automatic
Table Weight Capacity………. 1700 Lbs
Weight……………………. 6600 Lbs
Dimensions (LxWxH)…………. 128″ x 90″ x 88″
EQUIPPED WITH:
16” x 40” Electro-Magnetic Chuck w/Chuck Control
Manual Overhead Diamond Parallel Dresser
Coolant System w/Paper Filter
Splash Guard
Wheel Balancing Base & Arbor
Grinding Wheel
Wheel Flange
Tool Box & Tools
Halogen Work Light
MACHINE FEATURES:
Hydraulic Table
Electronic Cross Feed
(2) Speed Rapid Elevation Travel
Auto Incremental Downfeed
Auto Lubrication
Precision Turcite-B Ways
Class “7” Spindle Bearings
OPTIONAL ACCESSORIES (P.O.R.):
16″ x 40″ Walker Electro Chuck w/Control (Fine Pole)
Coolant System w/Magnetic Separator & Paper Filter
Extra Wheel Flange
(2) Axis Newall Digital Readout
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-4644376
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
