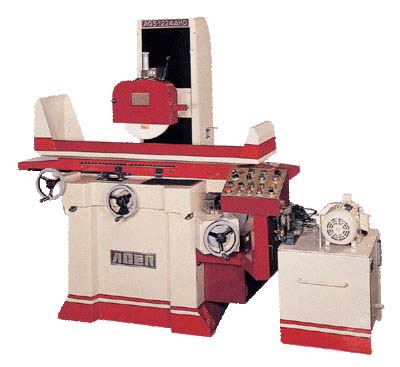

Model: 1632-AHD
Type: (3) Axis Automatic
Year: New
SPECIFICATIONS:
Table Size………………… 16″ x 32″
Longitudinal Travel…….(X).. 33-1/16″
Cross Travel…………..(Y).. 18″
Vertical Travel………..(Z).. 25″
Center Line Spindle To Table… 25″
Wheel Size………………… 14″ x 2″ x 5″
Spindle Speeds…………….. 1750 RPM
Motor Size Voltage…………. 7.5 HP – 220/440V – 3 Phs
Table Weight Capacity………. 1300 Lbs
Weight……………………. 6160 Lbs
Dimensions………………… 107″(l) x 88″(w) x 90″(h)
EQUIPPED WITH:
(3) Axis Automatic
Automatic Incremental Down Feed
16” x 32” Electro – Magnetic Chuck w/Chuck Control
Manual Overhead Diamond Parallel Dresser
Coolant System w/Paper Filter
Splash Guard
Wheel Balancing Base & Arbor
Grinding Wheel
Wheel Flange
Tool Box & Tools
Halogen Work Light
MACHINE FEATURES:
Hydraulic Table
Electronic Cross Feed
(2) Speed Rapid Elevation Travel
Auto Incremental Downfeed
Auto Lubrication
Precision Turcite-B Ways
Class “7” Spindle Bearings (paired)
OPTIONAL ACCESSORIES (P.O.R.):
16″ x 32″ Walker Electric Chuck w/Control (Fine Pole)
Extra Wheel Flange
(2) Axis Newall Digital Readout
