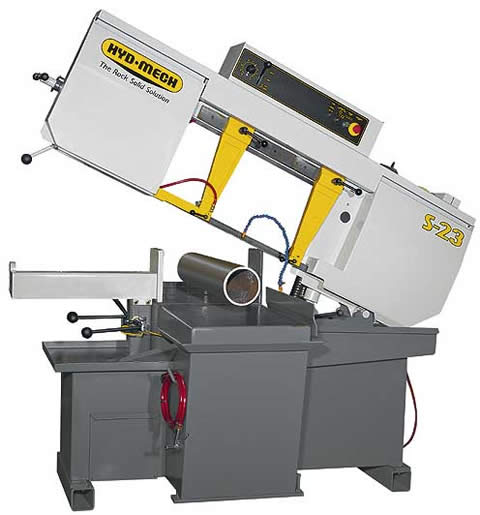

Model: S-23-H … Manual
TYPE: “Swivel Head” … “Scissor”
Year: New
SPECIFICATIONS:
Cutting Capacity:
Rounds:
Max. Height….. 16”
at 90 Degrees… 16” (L)
at 45 Degrees… 12” (L)
at 60 Degrees… 8” (L)
Rectangles:
Max. Width…… 18”
at 90 Degrees… 16” x 18”
at 45 Degrees… 16” x 10” (L)
at 60 Degrees… 16” x 6” (L)
Blade Size:……….. 1-1/4” X 15’6”
Blade Speed:(VS)…… 75-350 SFM
Motor Size:……….. 5 HP – 220/440V – 3 Phs
Weight:…………… 2500 Lbs
EQUIPPED WITH:
60 Degrees Mitering Capability
Swivel Head
Variable Frequency Drive
Heavy Duty Guide Arms
Heavy Duty Sliding Vise Jaw w/Locking Lever
Coolant Pump w/Wash Down Hose
Powered Blade Brush
Wash Down Hose
Head Feed Lever w/(3) Position Feed Valve
Work Light
ADDITIONAL OPTIONS AVAILABLE … P.O.R.
Full Capacity Overhead Bundling
34” Adjustable Material Stop
Mist Lubrication System
Variable Vise Pressure
5’ Idler Conveyor Type I
COMMENTS:
Warranty:
(2) Years Parts
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
