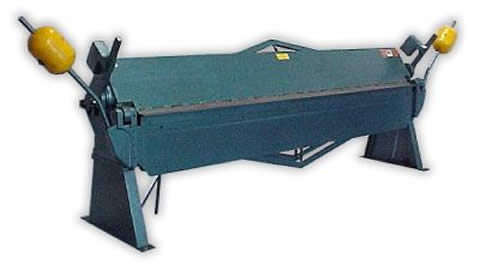

Model: HB-97-16
Type: Floor
Year: New
SPECIFICATIONS:
Material Capacity:… 059” (16 Ga)
Bending Capacity:
Mild Steel ……. 16 Ga
Stainless …….. 20 Ga
Aluminum ……… 14 Ga
Depth Of Box/Pan …. 2” (3) Sides
Bed Length:………. 97”
Weight:………….. 1675 Lbs
EQUIPPED WITH:
Pedestal Leveling Screws & Lock Nuts
Welded Steel Contruction
Adjustable Truss Bars On The Apron, Base, & Upper Beam
(2) Fully Adjustable Counter Weights
Removable Apron Angle & Insert For 1/4” Reverse Bends
Replaceable Nose Bar & Apron Insert
Manual Top Beam Adjustment (Hand Knob)
COMMENTS:
DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO At 614-914-5087
F.O.B. Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
