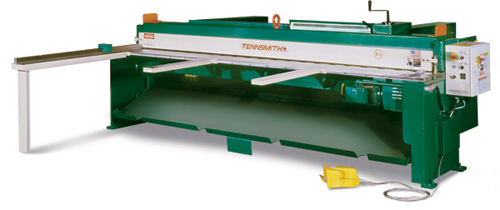

Model: MSE-1016-R
Type: Electro-Mechanical
Year: New
SPECIFICATIONS:
Length of Cut……… 121”
Max. Cut………….. 16 ga (.059″)
Strokes Per Min……. 40 SPM
Motor Size………… 3 HP – 220/440V – 3 Phs
Weight……………. 4250 Lbs
Dimensions (LxWxH)…. 140″ x 69″ x 50″
CAPACITIES:
Mild Steel ……. 16 ga
Stainless …….. 20 ga
Aluminum ……. 12 ga
EQUIPPED WITH:
Performance Package Consisting of:
5’ Squaring Arm w/Adjustable Stop
(2) Front Support Arms
Air Operated Sheet Support System (R = Rear)
Rear Operated Power Backgauge
Adjustable Guide Blocks
Remote Foot Pedal Control
Hi Chrome…Hi Carbon…(4) Edge Blades
MACHINE FEATURES:
Precision – Machined Table
Dual Inlaid Bed Scales – Inch/Metric
Non – Metallic Gibs
Neoprene Hold Downs Inserts (Prevents Marring)
Independent Self-Leveling Hold Down Feet
Motor Reverse Control
OPTIONAL ACCESSORIES (P.O.R.):
Digital Backgauge Readout
Flip-Stops for Squaring Arm
Front Support Arms
T-Slotted Table w/(2) Front Support Arms & Inlaid Inch/Metric Scales
Additional Flip-Up Stops for T-Slotted SupportArms & Table
30” Power “Go-To” Backgauge
Protractor Attachment
Stroke Counter (Electro-Mechanical)
Work Shadow Light
Hi-Carbon Hi-Chrome (4) Edge Blade (per Set)
5’ Squaring Arm w/Inlaid Scale (Inch/Metric)
10’ Squaring Arm w/Inlaid Scale (Inch/Metric)
COMMENTS: Mfg. In U.S.A.
