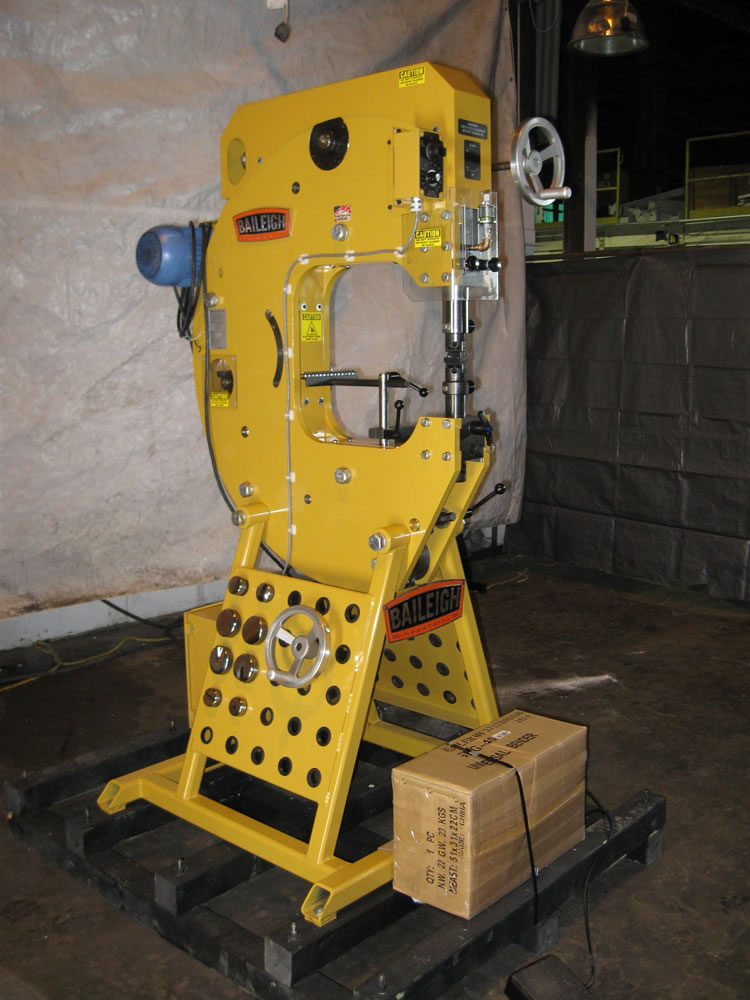

Model: MH-19
Type: Powered
Year: New
SPECIFICATIONS:
Throat Depth ……………. 19”
Length Of Stroke ………… 0.177” – 0.550”
Tooling Height Adjustment … 2”
Speed ………………….. 0 – 1500 BPM
Motor ………………….. 5 HP – 220V – 1 Phs
Weight …………………. 1600 Lbs
Dimension (LxWxH)………… 60″ x 60″ 84″
CAPACITIES:
Mild Steel …………… 16 GA
Aluminum …………….. 12 GA
EQUIPPED WITH:
Variable Speed
Stroke Length And Clearance Adjustable “On The Fly”
Adjustable Roller Back Gauge
Removable Handle For Material Clearance
Foot Pedal Or Automatic Control
English Wheel Assembly
Quick Change Tooling System
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
220V – 3 Phs
Pipe Tooling Kit
Small Radius Tube Kit
Large Radius Tube Kit
(2) Axis Positioning Table
