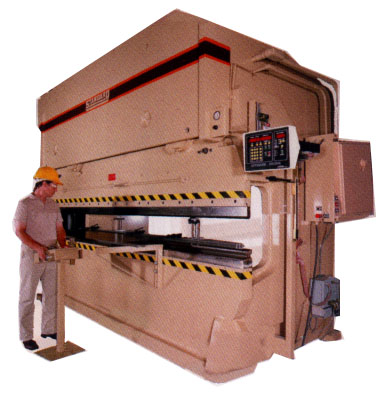

Model: AB-150-10
Year: New
Type: Hydraulic
SPECIFICATIONS:
Tonnage………………. 150 Ton
Bending Length………… 120″
Dist. Between Housings…. 101″
Throat Depth………….. 6”
Open Height…………… 13″
Stroke Length…………. 6”
Closed Height…………. 7″
Fast Approach Speed……. 123 IPM
Fast Return Speed……… 199 IPM
Press Speed…………… 25 IPM
Motor Size……………. 20 HP – 220/440V – 3 Phs
Capacities (Mild Steel)… 1/4″
Weight:………………. 22,000 Lbs
EQUIPPED WITH:
In-Line Depth Stop
Hydraulic Pressure Tonnage Control w/Gauge
Portable Control Station w/(2) Controls:
Inch Control
Emergency Stop
Operation & Parts Manual
MACHINE FEATURES:
“Large Bore” Single Hydraulic Cylinders
Massive “Heavy Duty” Welded Frame
Full Tonnage – Entire Length Of Bed & Ram Stroke
Manifold Centralized Lube System
Hand/Foot Safety Sequence w/Foot Switch
+/- 0.001” Ram Repeatability
Simple & Precise Ram Adjustment
All Components “Off The Shelf”
Off-Center Load Capability
OPTIONAL ACCESSORIES:
10′ Filler Block
Light Curtain w/Foot Switch
(4) Position In-Line Depth Stop
(2) Axis Automec CNC Backgauge Model 300/G24D
24″ of Gauge Travel
Inch to Metric Converter
Bend Allowance
Off-Line Programming
Auto Ram Reference
Onsite Training
(300) Programs
(11) Digit Part Numbers
RS-232 Interface
Ram Angle Mode
Gauge Retract/Delay
(32) Bends
Ram Depth Mode
Teach Mode
Tooling Library
Gauge Reversal on Pinch Point
Extended (7) Year Warranty, (2) Year PLC & (5) Year on Site
COMMENTS: Mfg. In U.S.A.
NOTE: Hydraulic Oil “Not Included”
