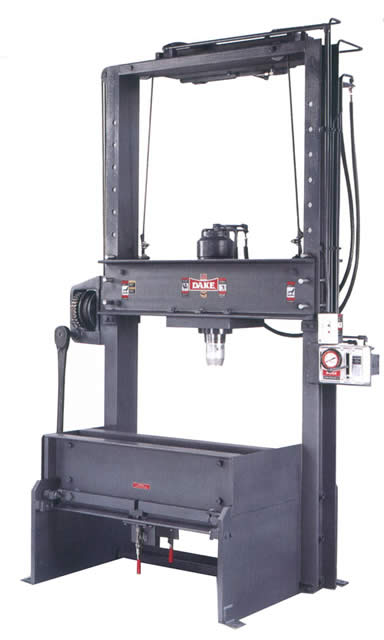

Model: 42-300
Type: Movable Table Air Over Hydraulic H-Frame
Capacity: 150 TON
Year: New
SPECIFICATIONS:
Capacity…………….. 150 Ton
Number of Pumps………. 1
Ram Travel…………… 16”
Ram Speed……………. 25 IPM Pressing
Ram Return Speed……… 1 IPM Return
Minimum Ram To Table….. 14-1/4”
Maximum Ram To Table….. 64-1/4”
Between Uprights……… 48″
Air Pressure…………. 90-125 PSI
Weight………………. 3,660 Lbs
EQUIPPED WITH:
Pressure Gauge
Movable Table
Adjustable Work Height
(1) Air Pump
Heavy Duty Hoist
Toggle Clamps
Safety Relief Valve
COMMENTS: Mfg In The U.S.A.
