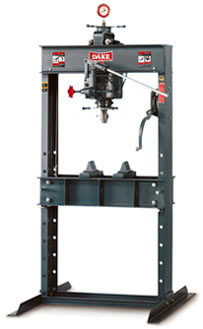

Model: 150H
Type: Hand Operated H-Frame
Capacity: 150 TON
Year: New
SPECIFICATIONS:
Capacity…………….. 150 Ton
Ram Travel…………… 8″
Screw Travel…………. 8″
Minimum Ram To Table….. 5″
Maximum Ram To Table….. 25”
Between Uprights……… 48″
Between Table Channels… 12-1/8”
Height ……………… 95″
Weight………………. 2,750 Lbs
EQUIPPED WITH:
Hand Operated Hydraulic Jack
(2) Forged Steel V-Blocks
(2) Forged Steel Table Plates
Flat Ram Nose
Rapid Ram Return
Adjustable Table
Movable Workhead
V-Ram Nose
Pressure Gauge
Self Locking Table Hoist
COMMENTS: Mfg In The U.S.A.
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Technical Question?
CALL: IMCO at 614-436-4376
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
