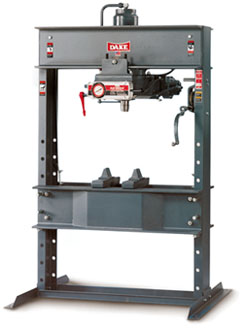

Model: 150
Type: Electric Over Hydraulic H-Frame
Capacity: 150 TON
Year: New
SPECIFICATIONS:
Capacity…………….. 150 Ton
Motor……………….. 2 HP – 230/460V – 3 Phs
RPM…………………. 1800 RPM
Ram Travel…………… 16”
Advanced Speed……….. 16″ IPM
Press Speed………….. 2-3/4″ IPM
Minimum Ram To Table….. 10”
Maximum Ram To Table….. 30”
Between Uprights……… 48″
Between Table Channels… 12-1/4”
Height ……………… 95″
Weight………………. 3000 Lbs
EQUIPPED WITH:
Flat Ram Nose
V-Ram Nose
Stroke Indicator
(2) Forged Steel V-Blocks
(2) Forged Steel Plates
Pressure Gauge
Safety Release Valve
Self Locking Table Hoist
MACHINE FEATURES:
Electric Operation
Rapid Ram Approach & Return
Adjustable Table
Variable Ram Speed
Movable Workhead
OPTIONAL ACCESSORIES:
Remote Pressure Regulator
COMMENTS: Mfg In The U.S.A.
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Technical Question?
CALL: IMCO at 614-436-4376
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
