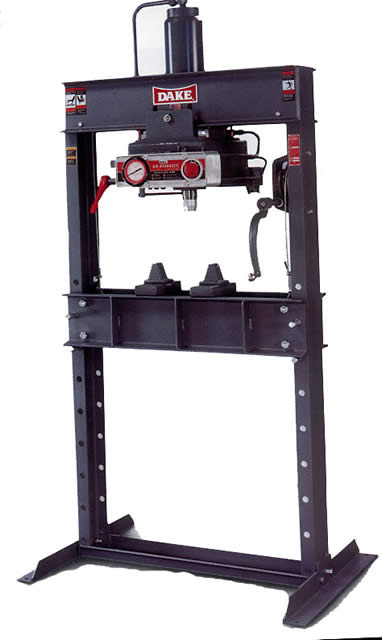

Model: 2P-150
Type: Air Over Hydraulic H-Frame
Capacity: 150 TON
Year: New
SPECIFICATIONS:
# Of Pumps ………….. 2
Capacity…………….. 150 Ton
Air Pressure…………. 90-125 PSI
Ram Travel…………… 16”
Advanced Speed……….. 22″ IPM
Press Speed………….. 2″ IPM
Minimum Ram To Table….. 10”
Maximum Ram To Table….. 30”
Between Uprights……… 48″
Between Table Channels… 12-1/4”
Height ……………… 95″
Weight………………. 3,050 Lbs
EQUIPPED WITH:
(2) Forged Steel V-Blocks
(2) Forged Steel Plates
V-Ram Nose
Stroke Indicator
Pressure Gauge
Safety Release Valvue
Self Locking Table Hoist
MACHINE FEATURES
Air Operation
Rapid Ram Return
By-Pass Hole
(2) Air Pump
Movable Workhead
OPTIONAL ACCESSORIES: P.O.R.
Remote Pressure Regulator
COMMENTS: Mfg In The U.S.A.
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Technical Question?
CALL: IMCO at 614-436-4376
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
