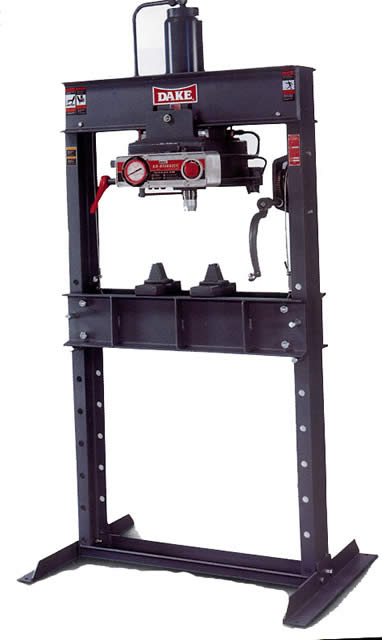

Model: 1P-150
Type: Air Over Hydraulic H-Frame
Capacity: 150 TON
Year: New
SPECIFICATIONS:
# Of Pumps ………….. 1
Capacity…………….. 150 Ton
Air Pressure…………. 90-125 PSI
Ram Travel…………… 16”
Advanced Speed……….. 25 IPM
Press Speed………….. 1 IPM
Minimum Ram To Table….. 10”
Maximum Ram To Table….. 30”
Screw Travel…………. 8″
Between Uprights……… 48″
Between Table Channels… 12-1/4”
Height ……………… 95″
Weight………………. 3,000 Lbs
EQUIPPED WITH:
(2) Forged Steel V-Blocks
(2) Forged Steel Plates
V-Ram Nose
Stroke Indicator
Self Locking Table Hoist
Pressure Gauge
Safety Release Valve
MACHINE FEATURES
Air Operation
Rapid Ram Return
By-Pass Hole
(1) Air Pump
Movable Workhead
OPTIONAL ACCESSORIES: P.O.R.
Remote Pressure Regulator
COMMENTS: Mfg In The U.S.A.
