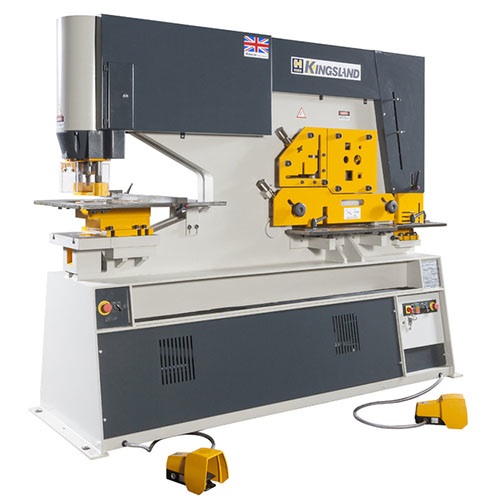

Model: Multi 140-14
Punch Capacity: 1-1/2″ Thru 1″
Type: Hydraulic
Year: New
SPECIFICATIONS:
Punching:
Max Tonnage ………. 140 Ton
Punch Capacity ……. 1-1/2″ Thru 1″
Max. Stroke Length … 3-1/8″
Throat …………… 14″
Shearing:
Flat Max …………. 24″ x 3/4″
Round Bar ………… 1/4″ Up To 2-1/8″
Square Bar ……….. 2-1/8″
Angle Shear:
Maximum Size ……… 6″ x 6″ x 3/4″
Coper Notcher:
Size …………….. 3-1/8″ x 4″ x 1/2″
Motor Size ……….. 12 HP – 220/440V – 3 Phs
Weight …………… 7550 Lbs
Dimensions (LxWxH)…. 85″ x 37″ x 87″
EQUIPPED WITH:
(5) Separate Work Stations:
Punching
Angle Shear
Rod Shear
Bar Shear
Coper Notcher
Punch & Die
Easy Change Punch Holder
Ring Adaptors
Support Table at Punch, Notcher & Shear
Blades For Flat Shear Bar , Cropping Angle , Round & Square Bar
One-Shot Lube
Swing Away Punch Stripper Unit
Universal Die Bolster for Punching of Flats, Angle & Flanges of Channel or Beam
Coper Notcher Unit
Hydraulic Unit
Halogen Work Light
39″ Touch & Cut Ruled Length Stop
Measuring Scales in the Notch Table
Service Tool Kit & Operations Manual
MACHINE FEATURES:
Removable Table Block for Channel/Beam Punching
Compatible Work Station Heights
Work Station Guards
(2) Cylinder Operation
Overload Relief on Hydraulic System
Low Maintenance
OPTIONAL ACCESSORIES (P.O.R.):
Prouctivity Package – Includes:
Halogen Work Light
One Touch & Cut Ruled Length Stop
Fine Adjustment to Punch Stroke
Meaasuring Scales in Notch Table
Additional Angle Shear Blades
Additional Fat Shear Blades
Additional Round & Square Shear Blades
Rectangle Notch Punch & Die
Brake Attachment (Single Opening Die)
Brake Attachment (4 Way Die)
Large Hole Attachment (1-1/2″ to 4-5-16″)
90 Degree Vee Notcher
Punch Attachment for Notcher Station
Shear Blades for Tee
Adjustable Hold Down for Tee
Adjustable Roller Material Support
(4) Anti-Vibration Mounting Pads
Electrical (6) Digit Batch Counter
COMMENTS: Mfg. in Europe
