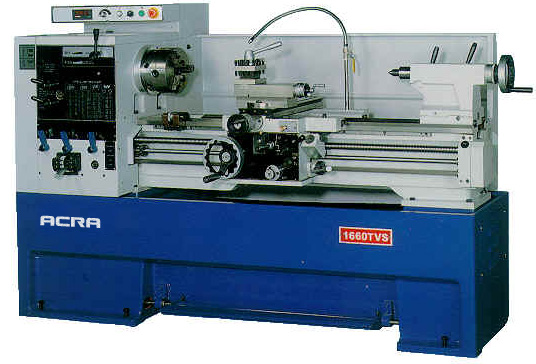

Model: TVS Series
Type: Engine Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 14″
Swing Over Cross Slide… 8-3/4″
Swing in Gap…………. 21″
Dist Between Centers….. 60″
Spindle Nose…………. D1-6
Spindle Hole…………. 2-1/16″
Bed Width……………. 10”
Spindle Speeds (VS)…… 20 – 2500 RPM
Threading……………. Inch / Metric
Motor Size…………… 5 HP – 220V – 3 Phs
Tailstock Taper………. #4 MT
Gross Weight…………. 4000 Lbs
Dimensions…………… To Be Advised
EQUIPPED WITH:
Variable Speed
8 – 3 Jaw Chuck
10” – 4 Jaw Chuck
(4) Way Tool Post
Full Length Splash Guard
Follow Rest
Steady Rest
Face Plate
Coolant System
Centering Sleeve
MACHINE FEATURES:
2-1/16” Spindle Hole
Inverter Controlled Motor (Variable Speed)
Gap Bed Design
H & G Bed Ways
Foot Brake
OPTIONAL ACCESSORIES: P.O.R.
12” – 3 Jaw Chuck
12” – 4 Jaw “Steel” Chuck
Micro Carriage Stop
Taper Attachment … Installed
Lever Type 5C Collet Attachment … Installed
5C Collet Set (1/8” – 1-1/8” x 1/16”)
440V (Variable Speed)
Halogen Work Light
Chuck Guard
Live Center #4 MT
Aloris Type Q.C. Tool Post w/Holders
Newall DRO … Installed
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
