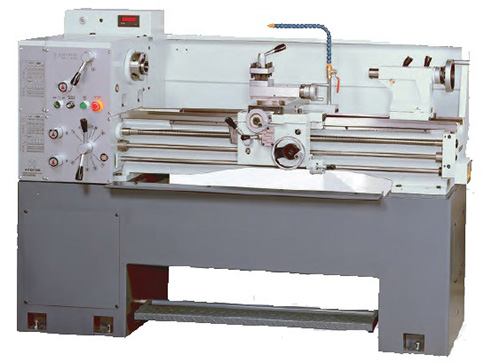

Model: LD-1440-VS
Type: Tool Room Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 14”
Swing Over Cross Slide… 8-3/4”
Swing in Gap…………. 20-3/4”
Dist Between Centers….. 40”
Max Turning Length……. 40”
Spindle Nose…………. D1-4
Spindle Hole…………. 1-9/16”
Bed Width……………. 9”
Spindle Speeds (VS)…… 36 – 2200 RPM
Threading……………. Inch / Metric
Motor Size…………… 5 HP – 220/440V – 3 Phs
Tailstock Taper………. #3 MT
Weight………………. 1805 Lbs
Dimensions…………… 75”(l) x 32”(w) x 63”(h)
EQUIPPED WITH:
6″ – 3 Jaw Chuck
(4) Way Tool Post
4-1/2″ Steady Rest
Follow Rest
Coolant System
One Shot Lube
Foot Brake
Thread Dial
Splash Guard
Tail stock
10″ Face Plate
Tools & Tool Box
Operation Manual
MACHINE FEATURES
1-1/2″ Spindle Hole
Gap Bed Design
H & G Head stock Gears
H & G Cross feed Screw
H & G Bed ways
Inch/Metric Threading w/Dual Scales
Built-in Safety Overload Clutch
Main Spindle Equipped w/(2) Precision Taper Roller Bearings
OPTIONAL ACCESSORIES:
8″ – 3 Jaw “Set Tru” Chuck
8″ – 6 Jaw “Set Tru” Chuck
Chuck Guard
Quick Change Toolpost w/(4) Holders
Taper Turning Attachment
5C Collet Closer
Work Light
Single Saddle Stop
(4) Position Saddle Stop
(2) Axis Newall Digital Readout – Installed
