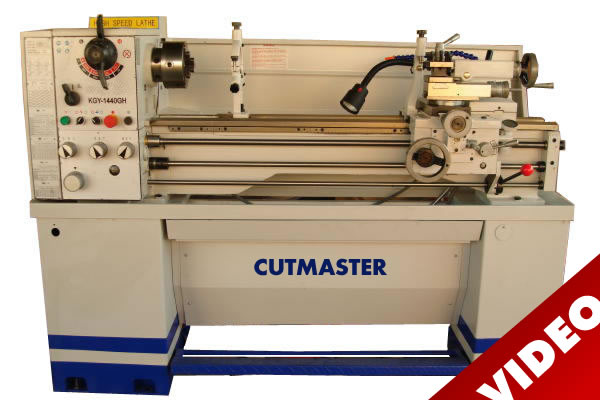

Model: KGY-GH … Geared Head
Spindle Hole: 1-9/16″
Year: NEW
SPECIFICATIONS:
Swing Over Bed:……….. 14”
Swing Over Cross Slide:… 8-3/16”
Swing In Gap:…………. 19-3/4”
Dist. Between Centers:…. 40”
Spindle Nose:…………. D1-4
Spindle Hole:…………. 1-9/16”
Bed Width:……………. 8-1/8”
Spindle Speeds:(8)…….. 70 – 2000 RPM
Threading:……………. Inch / Metric
Motor Size:…………… 2 HP-220V-1 OR Optional 3 Phs
Tailstock Taper:………. #3 MT
Weight:………………. 1500 Lbs
Dimensions……………. To be Advised
EQUIPPED WITH:
6” – 3 Jaw Chuck
8” – 4 Jaw Chuck
(4) Way Tool Post
Foot Brake
Coolant System
Follow Rest
2-3/4” Steady Rest
11” Face Plate
Work Light
Splash Guard
Chip Tray
Thread Dial
Jog Button
Emergency Stop Button
Tools & Tool Box
Operations Manual
“OPTIONAL ACCESSORIES” AVAILABLE … P.O.R.:
8” – 3 Jaw “Set Tru” Chuck
8” – 6 Jaw “Set Tru” Chuck
Taper Turning Attachment
Lever Collet Attachment…(Installed)
5C Collet Set (1/8” – 1-1/8” X 1/16”)
Aloris Type Q.C. Tool Post W / 5 Holders
2 HP – 220V – 3 PHS
Newall Digital Readout … (Installed)
COMMENTS:
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
