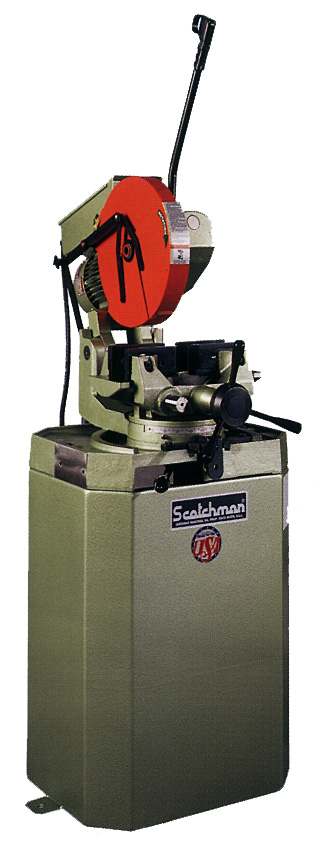

Model: CPO-350-NF
Type: Manual – Non-Ferrous
Year: New
SPECIFICATIONS:
Blade Size…………. 14”
Motor Size…………. 3 HP – 230V or 460V – 3 Phs
Arbor Speed………… 3000 RPM
Max Cutting Capacity… 45 ÌŠ …… 90 ÌŠ Degrees
Round
Solids……….. 2-1/2”…. 3”
Tubing……….. 4-1/4”…. 4-1/2”
Square
Solids……….. 2-1/2”…. 3”
Tubing……….. 4”…….. 4-1/4”
Rectangle
Tubing……….. 4″ x 4″… 4” x 5-1/2”
Vise Opening……….. Manual
Weight…………….. 675 Lbs
MACHINE FEATURES:
Manual Double Self-Centering Vise
Miter Capabilities 45 Degrees Left & Right
Capable of Slotting
Miter Locking Device
Positive Cog Belt Drive
STANDARD EQUIPMENT:
(10) Gallon Coolant Tank w/ Pump
(1) Blade Wrench
(1) HSS Blade 13-1/2” Diameter
(1) Gallon of Coolant
30” Material Length Stop
(1) Year Parts Warranty
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
10’ Material Supply Track
Vise Pressure Regulator
60” Material Stop Track
120” Material Stop Track
12-1/2” Blade (40 mm Bore)
14” Oxide Coated Blade (40 mm Bore)
PACKAGE:
(1) 13-1/2” 84 Tooth Carbide Blade
(1) 10’ Material Supply Track
(1) 10’ Material Stop Track
COMMENTS: Mfg. In USA
