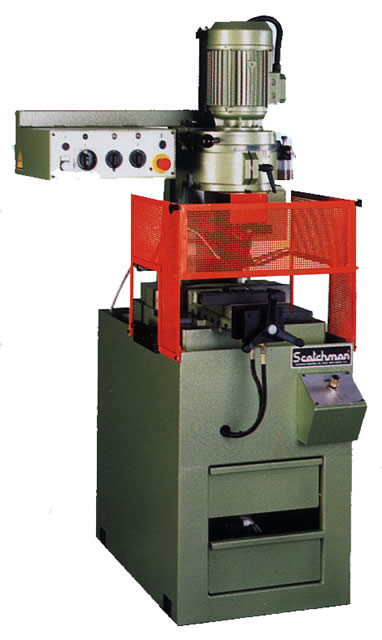

Model: CLM 350 SART
Type: Manual – Ferrous
Year: New
SPECIFICATIONS:
Blade Size…………. 14”
Motor Size…………. 2 HP – 220V or 440V – 3 Phs
Arbor Speed….(2)….. 12/25 RPM
Max Cutting Capacity… 45 Deg ……. 90 Deg
Round:
Solids:……….. 4″ ……….. 4″
Tubing:……….. 5″ ……….. 5”
Square:
Solids:……….. 4″ ……….. 4”
Tubing………… 4” ……….. 4”
Rectangle:
Tubing………… 4” x 4”……. 6-1/2” x 4”
Vise Opening……….. Air Powered
Feed Length………… N/A
Weight…………….. 1100 Lbs
STANDARD EQUIPMENT:
Double Jawed Self-Centering Vise
(2) Cutting Speeds
(10) Gallon Coolant Tank
(1) Gallon Coolant
(1) Blade Wrench
30″ Material Length Stop
MACHINE FEATURES:
Manual
Miters 45 Degrees Left & Right
Miter Locking Devise
Operator On/Off Trigger Switch
Steel Stand
Warranty: (12) Months (Parts)
COMMENTS: Mfg. In USA!
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
