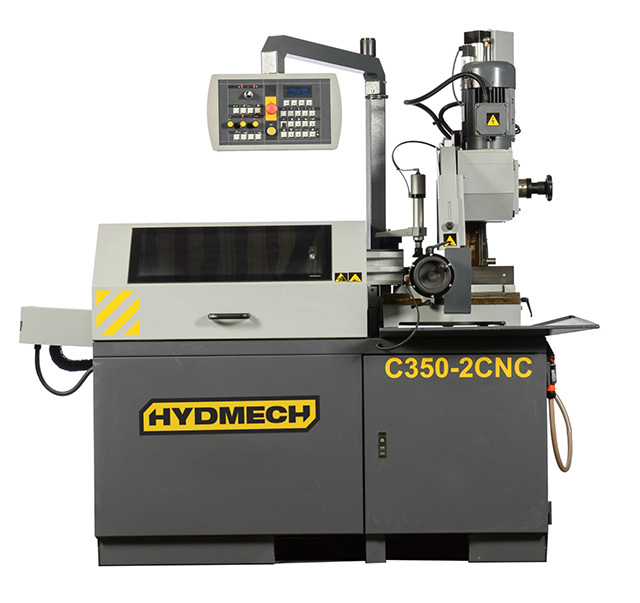

Model: C-350-2-CNC
Type: CNC Automatic – Ferrous
Year: New
SPECIFICATIONS:
Blade Size…………. 12″ – 14”
Motor Size…………. 3.5 HP – 220/440V – 3 Phs
Arbor Speed (2)…….. 12 – 40 & 36 – 120 RPM
Vise Opening……….. 7-1/2”
Feed Length………… NA
Weight…………….. 2332 Lbs
Dimension (LxWxH)…… 47″ x 84″ x 79″
Max Cutting Capacities:
Degree
90 Round Solids………… 3-3/4″
45 L & R Round Solids…… 3″
60 Left Round Solids……. 2-1/2″
90 Round Tubing………… 4-1/2″
45 L & R Round Tubing…… 4-1/4″
60 Left Round Tubing……. 3-1/2″
90 Square Solids……….. 3-1/2″
45 L & R Square Solids….. 2″
60 Left Square Solids…… 1-1/2″
90 Square Tubing……….. 3-3/4″
45 L & R Square Tubing….. 3-3/4″
60 Left Square Tubing…… 3″
90 Rectangle Tubing…….. 7″ x 3-3/4″
45 L & R Rectangle Tubing.. 4-3/4″ x 3-3/4″
60 Left Rectangle Tubing… 3-1/2″ x 3-3/4″
EQUIPPED WITH:
Blade Brush
Flood Coolant w/Wash Down Hose
Pneumatic Vise
(1) Blade
MACHINE FEATURES:
Programmable w/(99) Job Memory (Length & Quantity)
“Ball Screw” Shuttle Vise w/23” Single Stroke
Pneumatic Head Feed
Double Mitering Head (60 Degree L & 45 Degree L&R)
Easy Access Chip Drawer
Adjustable “Anti-Burr” Clamp
OPTIONAL ACCESSORIES:
2nd Air Vise
Mist Lubrication System
“Flip Over” Material Stop w/60″ Ruler
5′ Roller Table
Roller Table Support Stands
Roller Table Adapter
Ruler Extensions for Out Feed Roller Tables
Oxide Coated Blade
COMMENTS: Mfg. In North America
