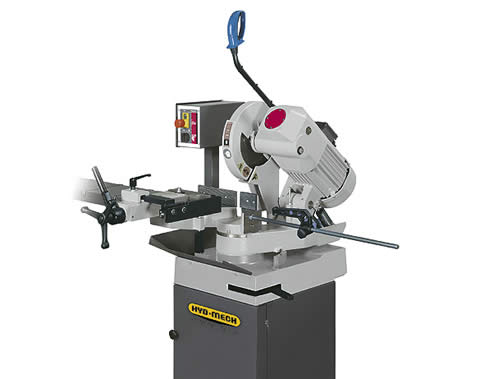

Model: P-350
Type: Manual – Ferrous
Year: New
SPECIFICATIONS:
Blade Size…………….. 12″ – 14”
Table Height…………… 38”
Speed (2)……………… 30/600 RPM
Motor Size…………….. 3 HP – 240/480V – 3 Phs
Weight………………… 30/60 RPM
Vise Opening…………… 4-3/4”
Weight………………… 575 Lbs
Dimensions (LxWxH)……… 46″ x 50″ x 70″
Max Cutting Capacities:
Degree
90 Round Solids………… 2″
45 Left Round Solids……. 1-1/2″
45 Right Round Solids…… 1-1/2″
90 Round Tubing………… 4-1/2″
45 Left Round Tubing……. 4″
45 Right Round Tubing…… 3″
90 Square Solids……….. 2″
45 Left Square Solids…… 1-1/2″
45 Right Square Solids….. 1-1/2″
90 Square Tubing……….. 4″
45 Left Square Tubing…… 3-1/3″
45 Right Square Tubing….. 3″
90 Rectangle Tubing…….. 5-1/8″ x 3-1/8″
45 Left Rectangle Tubing… 3-1/2″ x 3-1/3″
45 Right Rectangle Tubing.. 3-1/2″ x 2-1/2″
EQUIPPED WITH:
Adjustable Material Stop
Manual “Quick Acting” Vise
Material Support w/Rollers
Flood Coolant
MACHINE FEATURES:
Storage Cabinet
Double Mitering Head (45 Degree Left & Right)
Adjustable “Anti-Burr” Clamp
“Pistol Grip” Control Handle
OPTIONAL ACCESSORIES:
Material Stop w/Ruler
“Flip Over” Material Stop w/Ruler
5’ Roller Table
Roller Table Adaptor
Roller Table Support Stands
Oxide Coated Blade
COMMENTS: Mfg. In North America
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
