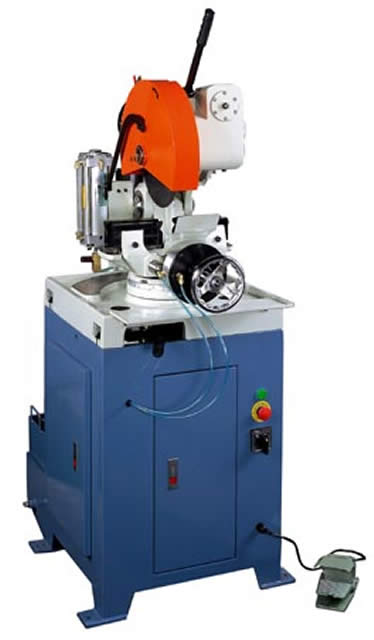

Model: CS-350-SA
Type: Semi-Automatic – Ferrous
Year: New
SPECIFICATIONS:
Blade Size…………… 14”
Motor Size…………… 4 HP – 220V – 3 Phs
Arbor Speed (2) ……… 26/52 RPM
Max. Cutting Capacity:
Round Solids:
at 90 Degrees… 2.362”
at 45 Degrees… 1.575”
Round Tubing:
at 90 Degrees… 4.331”
at 45 Degrees… 2.953”
Square Solids:
at 90 Degrees… 2.362” sq
at 45 Degrees… 1.575” sq.
Square Tubing:
at 90 Degrees… 4.250” sq.
at 45 Degrees… 2.935” sq.
Rectangle Tubing:
at 90 Degrees… 4.25” x 3.5”
at 45 Degrees… 2.93” x 2.36”
Weight………………. 900 Lbs
Dimensions (LxWxH)……. 60″ x 44″ x 48″
EQUIPPED WITH:
Semi-Automatic
Ferrous
Miter Head
Double Mitering
– 45 Degree Left
– 90 Degree Right
Pneumatic, Self Centering, Dual Clamping Vise
Foot Pedal (Activates Vise)
“U.S.A.” DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
