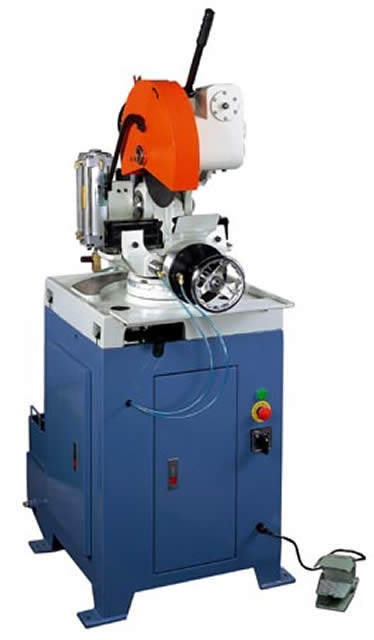

Model: CS-355-SA
Type: Semi-Automatic – Non-Ferrous
Year: New
SPECIFICATIONS:
Blade Size…………… 14”
Motor Size…………… 5.5 HP – 220V – 3 Phs
Arbor Speed………….. 3200 RPM
Max. Cutting Capacity:
Rounds Solids:
at 90 Degrees… 2.362″
at 45 Degrees… 1.575″
Round Tubing:
at 90 Degrees… 4.331”
at 45 Degrees… 2.953″
Square Tubing:
at 90 Degrees… 4.25”
at 45 Degrees… 2.935
Rectangle Tubing:
at 90 Degrees… 4.25” x 3.5”
at 45 Degrees… 2.935″ x 2.362″
Weight………………. 800 Lbs
Dimensions (LxWxH)……. 60″ x 44″ x 48″
EQUIPPED WITH:
Semi-Automatic
Non-Ferrous
Miter Head
High Speed
Double Mitering:
– 45 Degree Left
– 90 Degree Right
Pneumatic, Self Centering, Dual Clamping Vise
Foot Pedal (Activates Vise & Head Feed)
COMMENTS: Mfg. in North America
