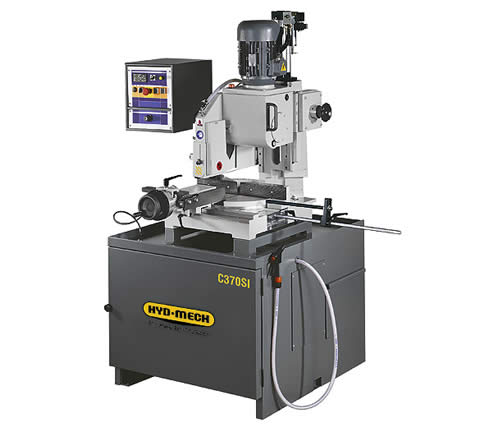

Model: C370-2SI
Type: Semi-Automatic – Ferrous (Pneumatic Vise)
Year: New
SPECIFICATIONS:
Blade Size…………. 12″ – 14.5”
Motor Size…………. 7.5 HP – 220/440V – 3 Phs
Speed (VS)…………. 15 – 150 RPM
Vise Opening……….. 7-1/2″
Weight…………….. 1410 Lbs
Dimensions (LxWxH)….. 45″ x 57″ x 75″
Max Cutting Capacities:
Degree
90 Round Solids………… 4-1/2″
45 L & R Round Solids…… 2-3/4″
60 Left Round Solids……. 2″
90 Round Tubing………… 4-3/4″
45 L & R Round Tubing…… 4-1/2″
60 Left Round Tubing……. 4-1/2″
90 Square Solids……….. 4″
45 L & R Square Solids….. 2-1/2″
60 Left Square Solids…… 2″
90 Square Tubing……….. 4-1/3″
45 L & R Square Tubing….. 4-1/3″
60 Left Square Tubing…… 3-1/2″
90 Rectangle Tubing…….. 7″ x 3-3/4″
45 L & R Rectangle Tubing.. 4-3/4″ x 3-3/4″
60 Left Rectangle Tubing… 3-1/2″ x 3-3/4″
EQUIPPED WITH:
Vertical Pneumatic Vise
Adjsutable Material stop w/Ruler
Powered Chip Brush
Flood Coolant w/Pump
Chip Drawer
(1) Blade
MACHINE FEATURES:
Semi-Automatic
Anti Burr Clamp w/Double Locking System
Heavy Duty Gear Box
Double Mitering Head (60 Degree L & 45 Degree L&R)
OPTIONAL ACCESSORIES:
Foot Pedal w/E-Stop
2nd Pneumatic Air Vise
Mist Lubrication System
“Flip Over” Material Stop w/60″ Ruler
5′ Roller Table
Roller Table Support Stands
Roller Table Adapter
Ruler Extensions for Out Feed Roller Tables
Oxide Coated Blade
COMMENTS: Mfg. In North America
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
​
TERMS: Check w/Order
All prices subject to change without notice
