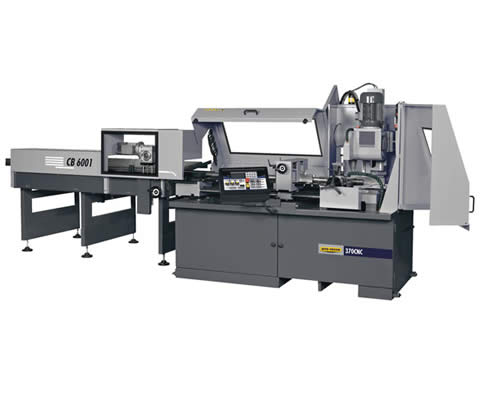

Model: C370-CNC
Type: Automatic – Ferrous
Year: New
SPECIFICATIONS:
Blade Size…………. 12″ – 14.5”
Motor Size…………. 7.5 HP – 240/480V – 3 Phs
Arbor Speed (VS)……. 15 – 150 RPM
Vise Opening……….. 7-1/2”
Weight…………….. 2350 Lbs
Dimension (LxWxH)…… 69″ x 97″ x 75″
Max Cutting Capacities:
Degree
90 Round Solids………… 4-3/4″
45 L & R Round Solids…… 2-3/4″
60 Left Round Solids……. 2″
90 Round Tubing………… 4-3/4″
45 L & R Round Tubing…… 4-1/2″
60 Left Round Tubing……. 4-1/2″
90 Square Solids……….. 4-1/4″
45 L & R Square Solids….. 2-3/4″
60 Left Square Solids…… 2″
90 Square Tubing……….. 4-1/4″
45 L & R Square Tubing….. 4″
60 Left Square Tubing…… 3-1/2″
90 Rectangle Tubing…….. 7″ x 4″
45 L & R Rectangle Tubing.. 4-3/4″ x 4″
60 Left Rectangle Tubing… Up to 3-1/2″
EQUIPPED WITH:
Vertical Pneumatic Vise
Control Panedl w/E-Stop
Blade Brush
Flood Coolant w/Pump
(1) Blade
MACHINE FEATURES:
Automatic w/Semi-Automatic Mode
Programmable w/(32) Job Memory (Length & Quality)
Ball Screw Shuttle Vise w/40″ Single Stroke (99 Strokes Max)
Electro-Mechanical Head Feed
Double Mitering Head (60 Degree L & 45 Degree L&R)
Adjustable “Anti-Burr” Clamp
OPTIONAL ACCESSORIES:
2nd Pneumatic Air Vise
Bundle Jaws
Mist Lubrication System
Automatic Chip Conveyor
Oxide Coated Blade
CB6001 Automatic Incline Loading Table
COMMENTS: Mfg. In North America
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
​
TERMS: Check w/Order
All prices subject to change without notice
