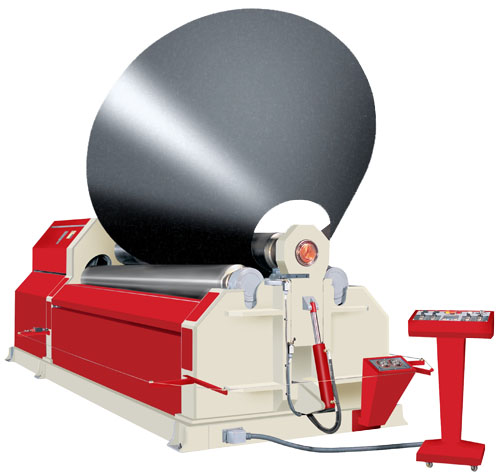

Model: AHS-40/04
Type: Hydraulic
Year: New
SPECIFICATIONS
Roll Length:…………….. 161”
Top Roll Diameter:……….. 10.52”
Rolling Cap. (Mild Steel):… .250” (1/4”) 36,000 PSI Yield Material
Pre-Bend Cap.(Mild Steel):… .157” (9 GA) 36,000 PSI Yield Material
Min. Diameter (Rolling):….. 31.56”
Min. Diameter (Pre-Bend):…. 31.56”
Number of Rolls (Total):….. (4)
Number of Rolls (Powered):… (2)
Rolling Speed:…………… 13 FPM
Motor:………………….. 7.5 HP – 220/440V – 3 Phs
Weight:…………………. 19,600 Lbs
EQUIPPED WITH:
(4) Roll Double Pinch
“Top” Pinch Roll … (Middle)
“Powered”
Nonadjustable
“Bottom” Pinch Roll … (Middle)
”Powered”
”Motorized” Adjustment
“Bottom” Forming Roll … (Front & Rear Side)
… “Non-Powered”
… “Motorized” Adjustment
Hydraulic Driven via Hydraulic Motor & Gear Reducer
Hardened Rolls
(2) Adjustable Side Rolls w/DRO’s
Leveling System to Insure Parallelism of all (3) Adjustable Rolls
Forward & Reverse Rotation
Adjustable Pinch Roll Pressure
(2) Speed Rotation (Switch)
Hydraulic Drop End w/Automatic Raise of the Top Roll
Inclinable Pinch & Side Rolls for Cone Rolling
Cone Rolling Attachment
Movable Control Console Equipped with:
Push Button Control of Roll Adjustment & Rotation
Switch Control of Roll Speed
Push Button Open/Close Hydraulic Drop End
Digital Readouts
E-Stop Button
Machine Perimeter E-Stop Cable
OPTIONAL ACCESSORIES AVAILABLE : P.O.R.
Variable Speed Rotation
(1) Overhead Support
(2) Side Supports
COMMENTS: Mfg. In U.S.A.
