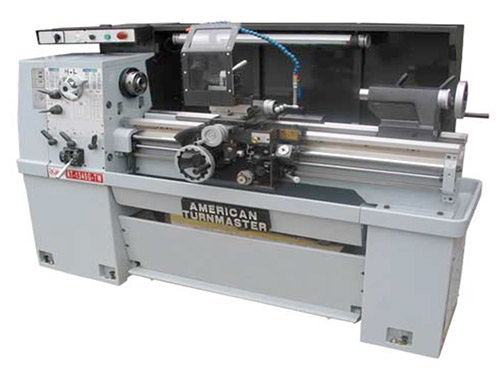

Model: AT-1340-G-TW
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 13-3/8”
Swing Over Cross Slide… 8.27”
Swing in Gap…………. 20”
Dist Between Centers….. 40”
Spindle Nose…………. D1-4
Spindle Hole…………. 1.57”
Bed Width……………. 9”
Spindle Speeds (16)…… 50 – 2570 RPM
Threading……………. Inch / Metric
Motor Size…………… 5 HP – 220V – 3 Phs
Tailstock Taper………. #3 MT
Gross Weight…………. 2855 Lbs
Dimensions…………… To Be Advised
EQUIPPED WITH:
MACHINE FEATURES:
1.57” Spindle Hole
Gap Bed Design
Tri-Way Design
Turcite Carriage Ways
Overload Feed Clutch
Constant Horsepower
Hardened & Ground Head Stock Gears
Hardened & Ground Bed Ways
STANDARD EQUIPMENT:
Tool Post
Thread Dial
Coolant System
Chip & Coolant Tray
Full Length Splash Guard
One Shot Luke
Back Plate
Foot Brake
Leveling Pads & Bolts
Tool Box w/Tools
Manuals
OPTIONAL ACCESSORIES:
6” – 3 Jaw “Semi Steel” Chuck
8” – 3 Jaw “Semi Steel” Chuck
8” – 4 Jaw “Semi Steel” Chuck
10” – 4 Jaw “Jaw “Semi Steel” Chuck
Taper Turning Attachment …(Installed)
Lever Collet Attachment…(Installed)
5C Collet Set (1/8” – 1-1/8” x 1/16”)
“Aloris Type” Q.C. Tool Post w/(5) Holders
14N Jacobs “Ball Bearing” Chuck w/Arbor (0” – 1/2” Capacity)
#3 MT Live Center
Chuck Guard w/Limit Switch
5-1/2” Steady Rest w/Rollers
4” Follow Rest w/Rollers
Micro Carriage Stop
(5) Position Carriage Stop
Upgrade To 440V – 3 Phs
Newall D.R.O. … Installed
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
