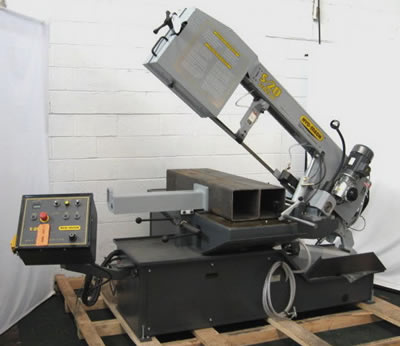

Model: S-20 … Variable Speed
Type: Scissors … Manual
Year: New
SPECIFICATIONS:
Cutting Capacity:
Round
Max. Height….. 13”
at 90 Degrees… 13”
at 45 Degrees… 12” (L)
at 60 Degrees… 8-1/2” (L)
Rectangle:
Max. Width…… 18”
at 90 Degrees… 13” x 18”
at 45 Degrees… 13” x 10-3/4” (L)
at 60 Degrees… 13” x 7-3/4” (L)
Blade Size:……….. 1” x 14’10” x .035”
Blade Speed:(VS)…… 45-33 SFM
Motor Size:……….. 3 HP-220V or 440V-3 Phs
Weight:…………… 2200 Lbs
EQUIPPED WITH:
Manual – Mitering (1) Direction
Variable Frequency Drive
Powered Blade Brush
Heavy Duty Sliding Vise Jaw w/Locking Lever
Manual Blade Tension w/Digital Readout
Swing Away Control Console
Carbide Guides
Coolant Pump w/Wash Down Hose
Swivel Head
Work Light
OPTIONAL ACCESSORIES AVAILABLE … (P.O.R.)
34” Adjustable Material Stop
Mist Lubrication System
Single Phase Option
5” Roller Conveyor
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
