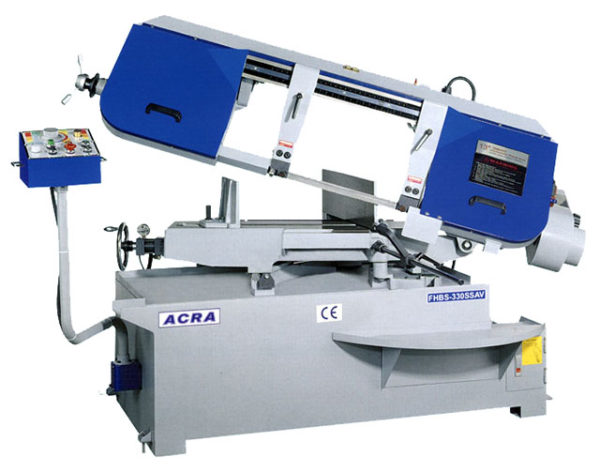

Model: FHBS 330-SA … Variable Speed & Miter
Type: Scissor … Semi-Automatic
Year: New
SPECIFICATIONS:
Cutting Capacity
Rounds
(Max. Height)… 13”
at 90 Degrees… 13”
at 45 Degrees… 10-1/2”
Rectangles
(Max. Width)…. 18”
at 90 Degrees… 13” x 18”
at 45 Degrees… 11” x 10-1/2”
Blade Size:……….. 7’9″ x 3/4″
Blade Speed(VS)……. 66 – 264 SFPM
Motor Size:……….. 3 HP-220/440V-3 Phs
Weight:…………… 1985 Lbs
Dimensions………… 90″(L) x 34″(W) x 59″(H)
EQUIPPED WITH:
Carbide Tusgsten Blade Guide
Built in Coolant
Self Propelled Built-In Blade Brush
Quick Positioning Clamping Vise w/Fully Adjustable Jaws
Romevable Chip Tray
Mitering
MACHINE FEATURES:
Semi-Automatic
Heavy Cast Iron Construction
Large Handwheel
Built in Gauge for Easy Blade Tensioning
Fully Adjustable Hydraulic Downfeed
Low Voltage Control w/Overload Protection
Centralized Control Panel
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
