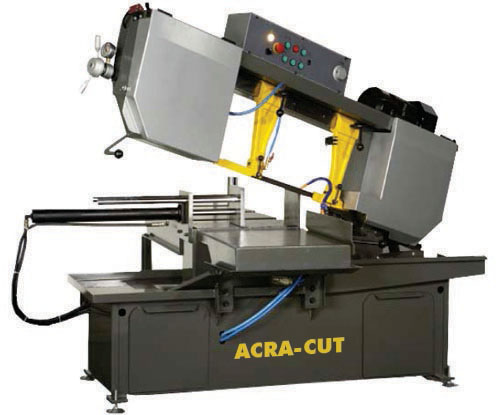

Model: RF-20-SA-PV
Year: New
SPECIFICATIONS:
Round At 90……… 13”
Round At 30……… 8.5”
Round At 45……… 12”
Rec. Or Sq. At 90… 13” x 18”
Rec. At 30………. 13” x 7-3/4”
Rec. At 45………. 13” x 10-3/4”
Work Height……… 26-5/8”
Blade Size………. 1” x 13’-10”
Blade Speed……… (V.S.) 45 – 330 SFM
Motor Size………. 3 HP – 220 Or 440V – 3 Phs
Weight………….. 2270 Lbs
Dimensions………. To be Advised
EQUIPPED WITH:
STANDARD EQUIPMENT:
Control Console
Hydraulic Vise
Coolant Pump
Powered Blade Brush
Work Light
Carbide Guides
MACHINE FEATURES:
“Semi-Automatic Operation” … Saw Head Returns to Top of Stroke & Vise Opens After Cutting
Mitering (1) Direction to 30 ÌŠ
Hydraulic Power Pack Controls – Powered Head Lift & Vise
Laser Light for Accurate Cutting
36” Infeed Roller Table
19” Outfeed Roller Table
Easy Swing – Head Frame
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO At 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
