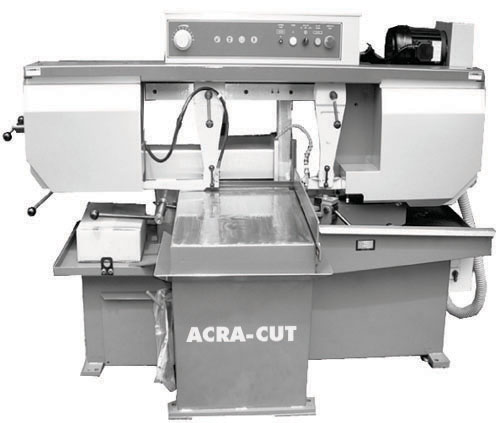

Model: RF-20-SA
Year: NEW
SPECIFICATIONS:
Round at 90……… 13”
Round at 30……… 8.5”
Round at 45……… 12”
Rec. or Sq. at 90… 13” x 18”
Rec. at 30………. 13” x 7-3/4”
Rec. at 45………. 13” x 10-3/4”
Work Height……… 26-5/8”
Blade Size………. 1” x 13’-10”
Blade Speed……… (V.S.) 45 – 330 SFM
Motor Size………. 3 HP-220 or 440V-3 Phs
Weight………….. 2270 Lbs
Dimensions………. To be Advised
EQUIPPED WITH:
STANDARD EQUIPMENT:
Control Console
Manual Vise
Coolant Pump w/Wash Down Hose
Powered Blade Brush
Work Light
Carbide Guides
MACHINE FEATURES:
“Semi-Automatic Operation” … Saw Head Returns to Top of Stroke
Mitering (1) Direction to 30 ÌŠ
Hydraulic Power Pack Controls – Powered Head Lift
36” Infeed Roller Table
19” Outfeed Roller Table
Easy Swing – Head Frame w/Scale in 1 ÌŠ Increments
Cast Iron Heavy Duty Guide Arms
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO At 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
