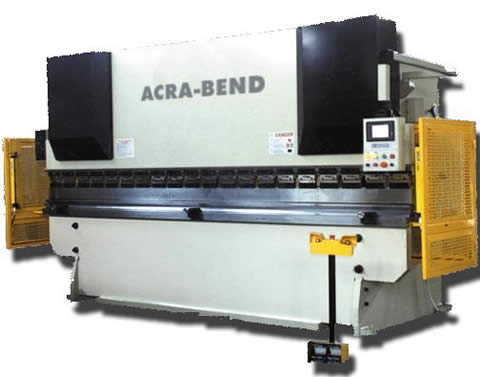

Model: 8/125-CNC
Type: CNC Hydraulic
Year: New
SPECIFICATIONS:
Tonnage…………….. 125 Ton
Bed Length………….. 98.49”
Dist Between Housings… 80.7”
Throat Depth………… 12.5”
Stroke Length……….. 1.96”
Ram Adjustment………. 5.5”
Fast Approach Speed….. 2.4” / Sec
Fast Return Speed……. 2.0” / Sec
Motor Size………….. 10 HP – 220/440V – 3 Phs
Weight……………… 16,535 Lbs
Dimensions (LxWxH)…… 120″ x 64″ x 101″
CAPACITY (Mild Steel):
8′ x 1/4″
6′ x 5/16″
EQUIPPED WITH:
(2) Axis CNC Color Graphic Control
– 6″ LCD Touch Screen
– Programmable Bend Angle
– Programmable Backgauge Position
– Auto Bend & Retract of Backgauge
– Stores 1000’s of Programs w/Up to (10) Bends per Program
– USB Port, Ethernet & RS-232
24″ Front Operated Power Backgauge w/Digital Readout
Power Ram Adjustment w/Digital Readout
Foot Pedal
(8) Way Bottom Die
(1) Gooseneck Top Punch
“Sick” Light Curtain
MACHINE FEATURES
Hydraulic Cylinders
Ram Depth Stops – Located In Hydraulic Cylinders (Motorized/Mechanical)
24” Front Operated Power Backgauge
(3) Speed Ram – Approach, Forming & Return
Note: Speed Change “Points” Are Set Manually
Down Acting Ram Guided By “Anti-Friction” Ways
Torsion Bar Provides Ram Cylinder Parallelism
Floor Mount
Swell Timer at Bottom of Ram
OPTIONAL ACCESSORIES:
Pilz Laser Guard
(3) Axis “R” CNC Control of Backgauge Finger Height
CNC Controlled Mechanical Auto Crown
“High Speed” Servo Backgauge
Installation & Training:
COMMENTS:
