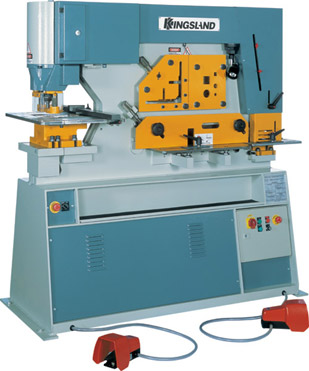

Model: Multi 125-14 … (5) Work Stations
Punch Capacity: 1-3/8″ Thru 1″ Plate
Type: Hydraulic
Year: New
SPECIFICATIONS:
Punching:
Max Tonnage ………. 125 Ton
Punch Capacity ……. 1-3/8″ Thru 1″
Max. Stroke Length … 3-1/8″
Throat …………… 14″
SHEARING:
Flat Max …………. 24″ x 5/8″
Round Bar ………… 1/4″ Up To 2-1/8″
Square Bar ……….. 2-1/8″
ANGLE SHEAR:
Maximum Size ……… 6″ x 6″ x 3/4″
COPER NOTCHER:
Size …………….. 2-3/8″ x 4″ x 1/2″
Motor Size ……….. 10 HP – 220/440V – 3 Phs
Weight …………… 7450 Lbs
Dimensions………… To be Advised
EQUIPPED WITH:
(5) Separate Work Stations:
Punching
Angle Shear
Rod Shear
Bar Shear
Coper Notcher
Punch & Die
Easy Change Punch Holder
Ring Adaptors
Support Table at Punch, Notcher & Shear
Blades For Flat Shear Bar , Cropping Angle , Round & Square Bar
One-Shot Lube
Swing Away Punch Stripper Unit
Universal Die Bolster for Punching of Flats, Angle & Flanges of Channel or Beam
Coper Notcher Unit
Hydraulic Unit
Halogen Work Light
39″ Touch & Cut Ruled Length Stop
Measuring Scales in the Notch Table
Service Tool Kit & Operations Manual
MACHINE FEATURES:
Removable Table Block for Channel/Beam Punching
Compatible Work Station Heights
Work Station Guards
(2) Cylinder Operation
Overload Relief on Hydraulic System
Low Maintenance
OPTIONAL ACCESSORIES (P.O.R.):
Prouctivity Package – Includes:
Halogen Work Light
One Touch & Cut Ruled Length Stop
Fine Adjustment to Punch Stroke
Meaasuring Scales in Notch Table
Additional Angle Shear Blades
Additional Fat Shear Blades
Additional Round & Square Shear Blades
Rectangle Notch Punch & Die
Brake Attachment (Single Opening Die)
Brake Attachment (4 Way Die)
Large Hole Attachment (1-1/2″ to 4-5-16″)
90 Degree Vee Notcher
Punch Attachment for Notcher Station
Shear Blades for Tee
Adjustable Hold Down for Tee
Adjustable Roller Material Support
(4) Anti-Vibration Mounting Pads
Electrical (6) Digit Batch Counter
COMMENTS: Mfg. in Europe
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
