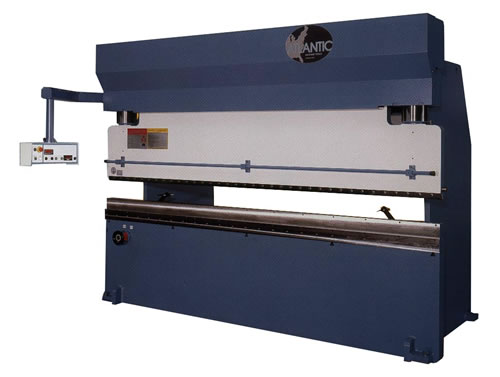

Model: HDE-12/120
Type: Hydraulic
Year: New
SPECIFICATIONS:
Tonnage…………….. 120 Ton
Bending Length………. 144”
Dist Between Housings… 124”
Throat Depth………… 9.8”
Stroke Length……….. 4.7”
Ram Adjustment………. 4.7”
Fast Approach Speed….. 165 IPM
Fast Return Speed……. 142 IPM
Press Speed…………. 17 IPM
Motor Size………….. 10 HP – 220/440V – 3 Phs
Weight……………… 18,040 Lbs
CAPACITY:
Mild Steel …. 12’ x 9 ga
Mild Steel …. 6’ x 5/16″
Stainless ….. 12’ x 12 ga
Aluminum …. 12’ x 5/16″
EQUIPPED WITH:
Pendant Control
31″ Motorized Backgauge
Foot Pedal
Hydraulic Oil
Operation & Parts Manual
MACHINE FEATURES
Hydraulic Cylinders
Ram Depth Stops … Located in Hydraulic Cylinders
(Motorized/Mechanical)
(3) Speed Ram – Approach, Forming & Return
Down Acting Ram Guided by Precision Ground Ways
Torsion Bar Provides Ram Cylinder Parallelism
Floor Mount
OPTIONAL ACCESSORIES:
“CNC” Power Backgauge
PENDANT CONTROL:
# 1 Button: Ram Depth Adjustment (DOWN)
# 2 Button: Ram Depth Adjustment (UP)
# 3 Button: Backgauge Adjustment (IN)
# 4 Button: Backgauge Adjustment (OUT)
COMMENTS: Mfg. in Europe
