Model: AGS-1230-AHD
Type: (3) Axis Automatic
Year: New
SPECIFICATIONS:
Table Size………………… 12” x 30”
Longitudinal Travel…….(X).. 33.1”
Cross Travel…………..(Y).. 13.1”
Vertical Travel………..(Z).. 23”
Center Line Spindle To Table… 23-1/2”
Wheel Size………………… 14″ x 1-1/4″ x 5″
Motor Size Voltage…………. 5 HP 220/440V – 3 Phs
Axis……………………… (3) Axis Automatic
Table Weight Capacity………. 600 Lbs
Weight……………………. 6600 Lbs
Dimensions………………… To Be Advised
EQUIPPED WITH:
(3) Axis Automatic
Automatic Incremental Down Feed
12” x 30” Electro – Magnetic Chuck w/ Chuck Control
Manual Overhead Diamond Parallel Dresser
Coolant System w Paper Filter
Splash Guard
Wheel Balancing Base & Arbor
Grinding Wheel
Wheel Flange
Tool Box & Tools
Halogen Work Light
MACHINE FEATURES:
Hydraulic Table
Electronic Cross Feed
(2) Speed Rapid Elevation Travel
Auto Incremental Downfeed
Auto Lubrication
Precision Turcite-B Ways
Class “7” Spindle Bearings (paired)
OPTIONAL ACCESSORIES: P.O.R.
Coolant System w/ Magnetic Separator & Paper Filter
Extra Wheel Flange
(2) Axis Nerall Digital Readout (Installed)

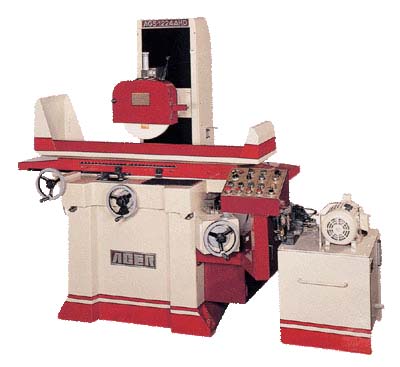

COMMENTS: Catalog Photo
