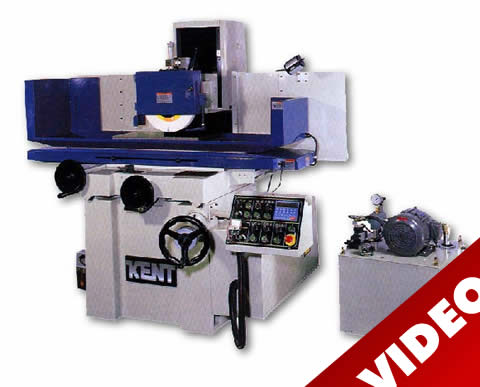

Model: KGS-63-AHD
Type: (3) Axis Automatic
Year: New
SPECIFICATIONS:
Table Size………………… 12” x 24”
Longitudinal Travel………… 28”
Cross Travel………………. 13-3/8”
Vertical Travel……………. 24”
Center Line Spindle To Table… 24”
Table Load w/Chuck…………. 1000 Lbs
Wheel Size………………… 14” X 1-1/2” X 5”
Motor Size Voltage…………. 7.5 HP – 220/440V – 3 Phs
Axis……………………… (3) Axis Automatic
Table Weight Capacity………. 1000 Lbs
Weight……………………. 4600 Lbs
Dimensions (LxWxH)…………. 92″ x 74″ x 87″
EQUIPPED WITH:
12” x 24” Electro-Magnetic Chuck & Control
Magnetic Separator & Coolant System
Overhead Wheel Dresser
Wheel Balancing Base & Arbor
Grinding Wheel
Table Dresser
Wheel Flange
Tool Box & Tools
Halogen Work Light
MACHINE FEATURES:
(3) Axis Automatic
Auto Incremental Downfeed
Hydraulic Table – Roller Bearing
Fully Automatic Cycle Control w/Spark-Out Time & Auto Stop
Cast Iron Base
Vee & Flat Turcite Table Ways
Double-V Turcite Cross Ways
Solid-State Controlled Cross Feed
Auto Lube
Rapid Traverse to Wheel Head
Class “7” Spindle Bearings (Paired)
OPTIONAL ACCESSORIES AVAILABLE:
Magnetic Separator & Paper Filter Coolant System
Extra Wheel Flange
(1) Axis Sony Digital Read Out
(2) Axis Sony Digital Read Out
Installation & Set-Up
