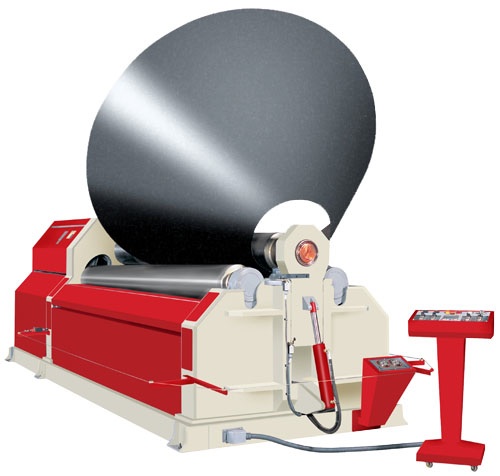

Model: AHS 37/06
Type: Hydraulic
Year: New
SPECIFICATIONS:
Roll Length:………………… 146.3”
Top Roll Diameter:…………… 11.8”
Pinch Roll Diameter:…………. 10.63″
Side Roll Diameter:………….. 8.27″
Rolling (Mild Steel):………… 0.315″ 35,000 PSI Yield Material
Pre-Bend (Mild Steel):……….. 0.250″ 35,000 PSI Yield Material
Min. Cylinder Diam.(Rolling):…. 35.4″
Min. Cylinder Diam.(Pre-Bend):… 35.4″
Number of Rolls:…………….. (4)
Rolling Speed:………………. 13 FPM
Motor:……………………… 10HP – 220/440V – 3 Phs
Machine Weight:……………… 20,100 Lbs
EQUIPPED WITH:
Double Pinch
“Top” Pinch Roll … (Middle)
“Powered”
Nonadjustable
“Bottom” Pinch Roll … (Middle)
”Powered”
”Motorized” Adjustment
“Bottom” Forming Roll … (Front & Rear Side)
… “Non-Powered”
… “Motorized” Adjustment
Hardened Rolls
Hydraulic Driven Rolls (Hydraulic Motor & Planetary
Gear Reducer)
(2) Adjustable Side Rolls w/D.R.O.
Pinch & Side Rolls Independently Adjustable
Leveling Sytem to Insure Parallelism of all
(3) Adjustable Rolls
Forward & Reverse Rotation (Push Button)
Adjustable Pinch Roll Pressure
(2) Speed Rotation (Switch)
Hydraulic Drop End w/Automatic Raise of the Top Roll
Inclinable Pinch & Side Rolls for Cone Rolling
Movable Control Console:
Roll Adjustment & Rotation (Push Button)
Roll Speed (Switch)
Open/Close Hydraulic Drop End (Push Button)
Digital Readouts
Machine Perimeter E-Stop Cable
Machine & Console Mounted E-Stop Buttons
Cone Rolling Attachment (Reduced Capacity)
OPTIONAL ACCESSORIES AVAILABLE: … P.O.R.
Variable Speed Rotation
(1) Overhead Support
(2) Side Supports
COMMENTS: Mfg. In Europe
