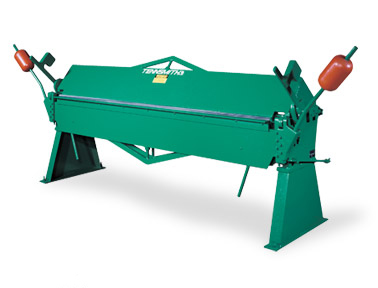

Model: HB-48-12
Type: Straight Brake
Year: New
SPECIFICATIONS:
Bending Length…… 49”
Weight………….. 1100 Lbs
CAPACITIES:
Mild Steel ……. 12 ga
Stainless …….. 16 ga
Aluminum ……. 10 ga
EQUIPPED WITH:
Bolt on Apron Angle & Insert
Adjustable Stop Rods for Repeat Bends
(2) Fully Adjustable Counter Weights
Replaceable Nose Bar & Apron Insert
Manual Top Beam Adjustment (Hand Knob & Set Screw)
MACHINE FEATURES:
Welded Steel Construction
Pedestal Leveling Screws & Lock Nuts
Adjustable Truss Bars on the Apron, Base, & Upper Beam
Bronze Bushings
COMMENTS: Mfg. In U.S.A.
DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
