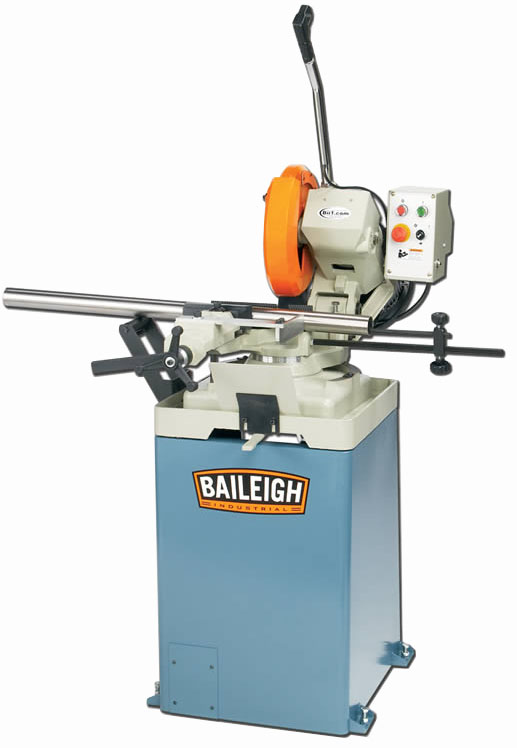

Model: CS-315-EU
Type: Manual – Ferrous
Year: New
SPECIFICATIONS:
Blade Size:………….. 12.5”
Motor Size:………….. 2.5 HP – 220V – 1 Phs
Arbor Bore:………….. 1-1/4″
Blade Speed:…………. 52 RPM
Max. Cutting Capacity:
Round Solids:
at 90 Degrees… 3.5”
at 45 Degrees… 2”
Round Tubing:
at 90 Degrees… 3.5”
at 45 Degrees… 3.5”
Square Tubing:
at 90 Degrees… 3.2”
at 45 Degrees… 3.2”
Rectangle Tubing:
at 90 Degrees… 4.25” x 2.75”
at 45 Degrees… 3.25″ x 2.75″
Vise Opening:………… 4.7”
Weight:……………… 500 Lbs
EQUIPPED WITH:
Manual Downfeed
Ferrous
Cast Iron Construction
Steel Base
Miter 45 Degrees Left & 45 Degrees Right
Storage Cabinet
Long Handle For Guiding Saw
Direct Drive Gear Box
Coolant Pump
