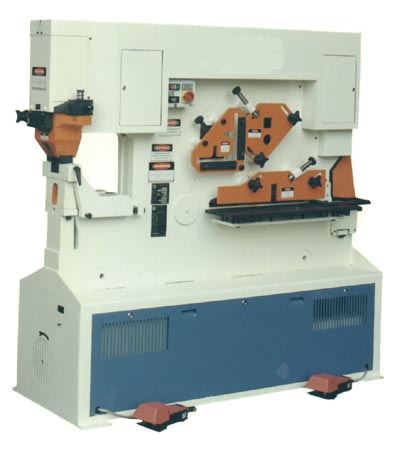

Model: HIW 1000/340 … (5) Work Stations
Punch Capacity: 1-3/8″ Hole Thru 3/8″ Plate
Type: Hydraulic
Year: New
SPECIFICATIONS:
PUNCHING:
Maximum Tonnage…… 110 Ton
Punch Capacity……. 1-3/8” Dia. thru 3/8”
Throat…………… 13-3/8”
BAR SHEAR:
Flat Max Thickness… 16” x 3/4”
Flat Maximum Width… 24” x 5/8”
ANGLE SHEAR:
Maximum Size……… 6” x 6” x 5/8”
COPER NOTCHER:
Coper Notcher Size… 2-3/8” x 3-1/2” x 1/2”
Motor Size……….. 12 HP – 220/440V – 3 Phs
Weight…………… 7100 Lbs
Dimensions……….. 72″L x 30″W x 90″H
EQUIPPED WITH:
Quick Change Punch Holder
(2) Remote Foot Pedals
Automatic Adjustable Holddown
Support Table
Mitering Guide
2.5 ÌŠ Rake Angle for Precisioon Shearing
All Standard Safety Guards
MACHINE FEATURES:
(5) Separate Work Stations
Punching Station
Notching Station
Angle Shearing Station
Round/Square Bar Station
Flat Bar Shearing Station
Adjustable Slide Back Stripper w/Safety Guarding
Hydraulic Center Spotter in Foot Pedal
OPTIONAL ACCESSORIES:
Size I – 25” KAT Universal Gauge Table
Size II – 50” KAT Universal Gauge Table
Size III – 70” KAT Universal Gauge Table
40“ Touch & Cut Ruled Length Stop
80“ Touch & Cut Ruled Length Stop
120“ Touch & Cut Ruled Length Stop
Supports Stand for Above
Basic Package – Includes:
SAT Table
Lamp w/Magnetic Base
40” Touch & Cut Ruled Length Stop
Super Package – Includes:
Size I KAT Table
Lamp w/Magnetic Base
40” Touch & Cut Ruled Length Stop
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Technical Question?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
