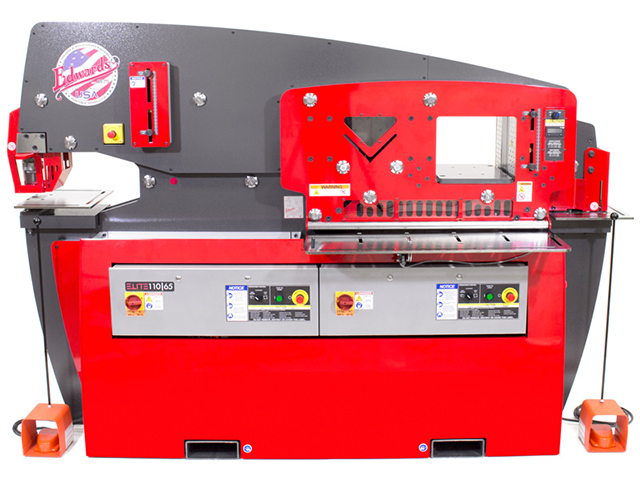

Model: Elite 110/65 DO … (5) Work Stations
Punch Capacity: 1-3/8″ Hole Thru 1″ Plate
Type: Hydraulic
Year: New
SPECIFICATIONS:
PUNCHING:
Max Tonnage…………. 110/65 Ton
Punch Capacity………. 1-3/8″ Hole Thru 1″ Plate
Max. Stroke Length…… 3″
Throat……………… 17-3/4″
SHEARING:
Flat Bar (24″ Blade)…. 24″ x 3/8″
14″ x 1/2″
ANGLE SHEAR:
Angle Shear @ 90 Degree. 5″ x 5″ x 3/8″
Round Bar…………… Up to 1″
Square Bar………….. Up to 1″
COPER NOTCHER:
Coper Notcher……….. 2-1/2″ x 6″ x 3/8″
Vee Notcher…………. 3″ x 3″ x 1/4″ (Optional)
Motor Size………….. 7.5 HP – 220V – 3 Phs
Weight……………… 8580 Lbs
Dimensions………….. 91-9/16″(l) x 44-7/8″(w) x 65-1/8″(h)
EQUIPPED WITH:
(5) Separate Work Stations:
Punching Station
Flat Bar Shear
Angle Shear
Coper Notcher
Open Tooling Station
Hydraulic Hold Down
E-Stop/Lockout-Tagout
Electric Stroke Control
Swing Away Stripper Assembly
Roller Encoder Measuring System
Quick Change Punch Assembly
Central Lubrication System
Premium Guaging Tables
LED Lighting
Hydraulic Accessory Pack
OPTIONAL ACCESSORIES:
440V – 3 Phs
220V – 1 Phs
Call our Office at 614-914-5087 for a Complete list of Optional Accessories
COMMENTS: Mfg. in U.S.A.
